Extra large solar panels > 180W

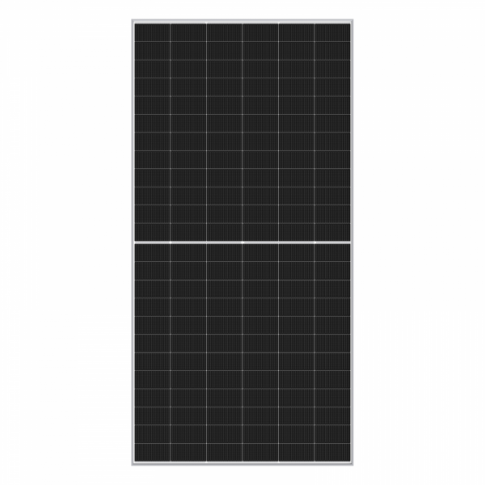

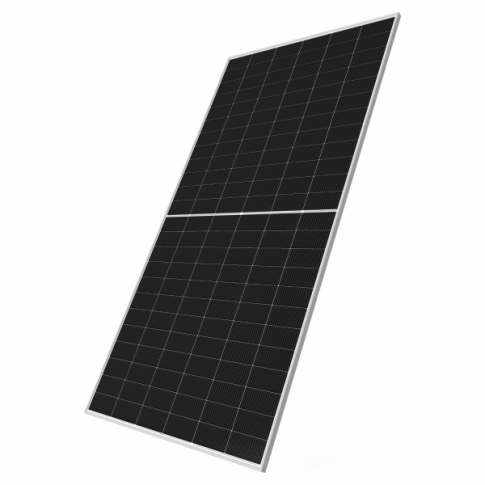

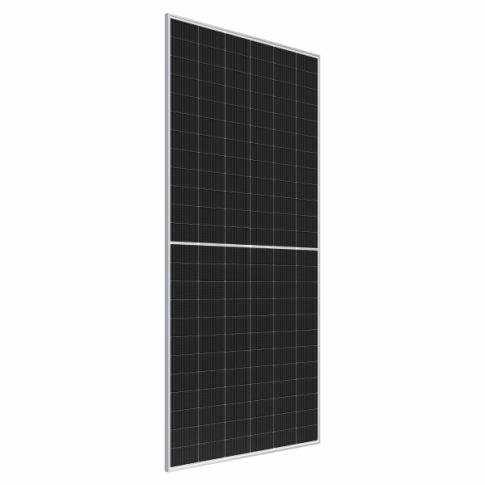

585W Sharp NB-JD585 Bifacial Silver Frame Solar panel with high-efficiency TOPCon cells and silver frame
Phone order?
0203 150 1111
and quote the product code below
Photonic Universe are proud to present this high quality silver frame 585W solar panel from leading solar panel manufacturer Sharp, which has over 60 years of experience with solar technology and over 50 million solar panels installed all over the world.
High efficient TOPCon (Tunnel Oxide Passivated Contact) solar cells offer significant benefits, including higher efficiency due to improved passivation and reduced recombination losses, better performance at high temperatures, and enhanced long-term stability. They also excel in bifacial applications which increases overall energy yield. The half-cut cell construction decreases internal losses, reduces risk of hotspots and improves performance in shaded conditions.

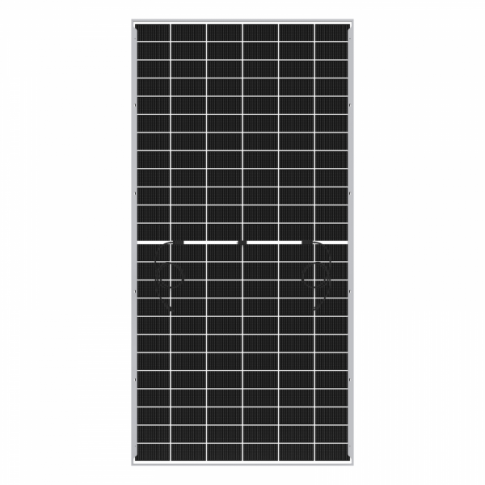

This panel has bifacial solar technology to capture sunlight on both the front and rear surfaces, significantly increasing energy output by harnessing reflected light from the ground. The solar yield can be increased by up to 20% depending on the mounting angle and mounting surface. This panel is ideal for various installations, including ground-mounted systems, rooftops, and building-integrated photovoltaics, offering enhanced performance and durability.
Additionally, this MCS certified panel is perfect for a wide variety of off-grid installations where mains power is limited or unavailable such as boats, caravans, campervans, cabins or glamping huts. These high-power panels are ideal for large systems where the time and expense of fitting a high wattage array needs to be minimised.
The robust design of the panel is IP68 (waterproof) rated, and tested for resistance against PID, salt mist, ammonia, heavy snow, dust and sand. This thorough testing ensures a long service life even in harsh marine or wilderness conditions. A pair of male / female MC4 connectors are crimped on the end of the cable for easy waterproof connection to other solar panels, extension leads or your existing system.
With up to a 25-year product guarantee for EU countries (12-year globally), and up to a 30-year power output guarantee, you can be confident in the quality, durability and longevity of this premium solar panel.
UK mainland deliveries only. For non-mainland addresses (including the Scottish Highlands) please contact us for a delivery quote.
Click on the Details and Specifications tab for more information.
Specifications:
- Peak power: 585W
- Maximum power voltage: 43.37V
- Maximum power current: 13.49A
- Open circuit voltage: 52.76V
- Short circuit current: 14.09A
- Power tolerance: 0/+5%
- Dimensions: 2278 x 1134 x 30 mm
- Weight: 32.5 kg
- Mounting holes for ease of installation
- 1 x 0.4m (+) and 1 x 0.2m (-) of high-quality single core solar cable
- Male and female MC4 waterproof connectors
The product is covered by up to a 25-year product guarantee provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least 99% of nominal power in the first year after purchase and less than 0.4% degradation of nominal power each year after until 30 years after purchase, for a minimum of 87.5%.
Full warranty documentation can be found in the Documents tab. For more information please refer to our Terms and Conditions.
Please note: if the application of this solar panel is to charge batteries, it is essential that this solar panel is used with a suitable solar charge controller. We recommend the following types of solar charge controllers:
- For 12V batteries, a high efficiency MPPT solar charge controller rated at 40A or higher
- For 24V batteries, a high efficiency MPPT / or standard PWM solar charge controller rated at 20A or higher
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
The following documents are available to download:
Datasheet for Sharp NB-JD585 585W monocrystalline solar panel (SRP-585BF)
Installation Guide for Sharp NB-JD585 585W monocrystalline solar panel (SRP-585BF)
Warranty information for Sharp NB-JD585 585W monocrystalline solar panel (SRP-585BF)
Pallet and Packing information for Sharp NB-JD585 585W monocrystalline solar panel (SRP-585BF)
