Lead Acid Batteries

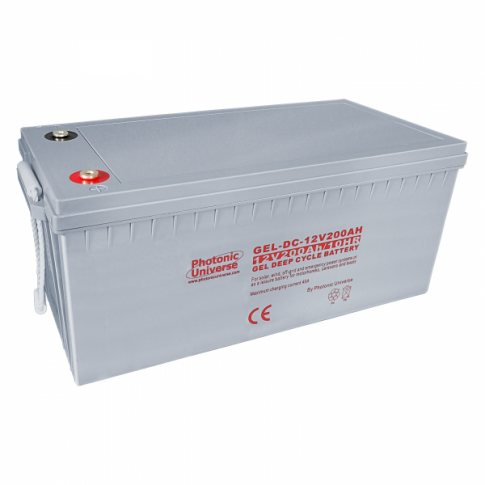

200Ah 12V Gel deep cycle battery for motorhomes, caravans, boats and off-grid power systems
Phone order?
0203 150 1111
and quote the product code below
What is a Gel battery?
A gel battery is a type of Valve Regulated Lead Acid (VRLA) battery filled with special gel-type electrolyte. Gel batteries are non-spillable, completely sealed and maintenance free - one of the safest batteries you can find. They have a much longer service life compared to standard wet-cell batteries due to less degradation and corrosion inside the battery. Gel batteries hold charge very well and have a much lower self-discharge rate.
Other important benefits of gel batteries include:
- Better recovery from deep discharge
- Wider working temperature range (gel batteries work well even in cold temperatures as low as -10C)
- Their position doesn't have to be upright all the time
- These batteries have better resistance to shock and vibration
Deep cycle means that this battery has been specially designed for applications which involve regular deep discharge. Such applications include using it as a leisure battery in caravans, motorhomes, campervans and boats, or energy storage in lighting systems, telecommunications, networking equipment and various types of off-grid power systems. This battery is also great for emergency power storage and UPS systems.
This battery is a perfect choice for our solar charging kits due to its excellent solar charge acceptance. It is also ideal for various wind power systems or for combined solar and wind energy storage.
The service life of this battery is more than 5 years, but if treated well the battery can last up to 10 years.
The battery comes packaged in a carton box with a user manual and bolts/washers for terminals.
Click on the Details and Specifications tab for more information
Specifications:
- Nominal voltage: 12V
- Nominal capacity: 200Ah (10h rate) / 205Ah (20h rate)
- Maximum charging current: 40A
- Self-discharging rate: <1% per month
- Cycle lifetime at 30% D.O.D.: 1200-1300
- Pressure control: safety valve installed
- Terminal type: F24 (bolts and washers included)
- Operating temperature: from -10C to +50C
- Size: 523 x 239 x 243 mm
- Weight: 61.5 kg
This product is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.
The following documents are available to download:
User Manual for Photonic Universe 12V 200AH Gel Battery (GEL200AH)
