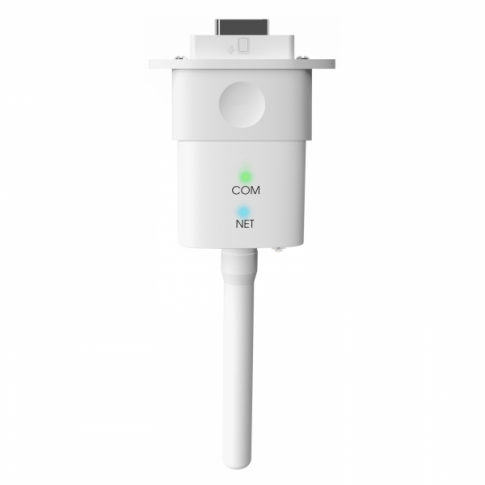

The TBB-KIN2 is a compact and efficient wireless data logger designed to seamlessly connect to TBB Power inverters via a DB9 interface. It provides users with an intuitive and reliable way to remotely monitor system performance through the NOVA web platform or mobile app. This device is ideal for enhancing the accessibility and convenience of your power system management.

Key Features:

• Effortless connectivity: Supports Wi-Fi Protected Setup (WPS), streamlining the process of establishing a connection without the need to manually select network names or input passwords.
• Remote system monitoring: By connecting the TBB-KIN2 to your inverter, you can access real-time performance data and system insights through the NOVA web platform or app. This allows you to monitor and control your system from virtually anywhere.
• Seamless integration: The DB9 interface ensures quick and straightforward communication between the data logger and your inverter, enabling hassle-free setup and operation.

Compatibility:

The Kinergy II Wi-Fi module is compatible with most TBB Power inverter series and MPPT chargers, including RiiO Sun II, Apollo Matrix, Tyrann, Matrix II, and Ingesola. It supports BLE configuration via the app for easy and stable Internet connectivity, as well as Wi-Fi Protected Setup (WPS) to simplify Wi-Fi connection without needing to select a network name (SSID) or enter a password (requires a router with WPS capability).

Please refer to the Details and Specifications tab for more information on compatibility and installation.

TBB Kinergy-II Wi-Fi module specifications:

• Operating voltage range: 4.5-18V
• Operating current: <250mA
• Communication port: DB9
• Internal communication port: RS485 and CAN
• Operating temperature range: -20°C to +60°C
• Protection: IP65
• Dimensions: 60 x 32.3 x 143 mm
• Net weight: 56g

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

This product comes with a detailed user manual which explains installation and operations (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for TBB-KIN2 Wi-Fi module

Datasheet for TBB-KIN2 Wi-Fi module

TBB NOVA App (IOS)

TBB NOVA App (Android)
