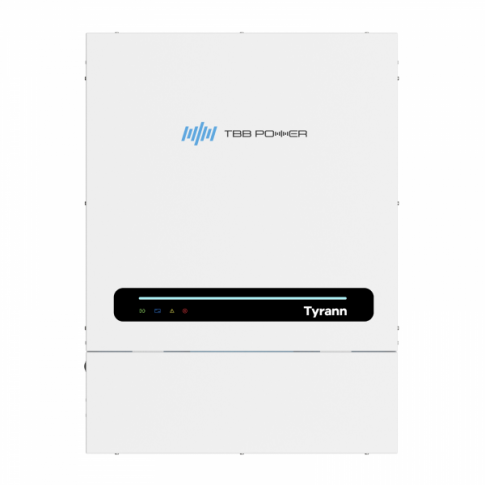

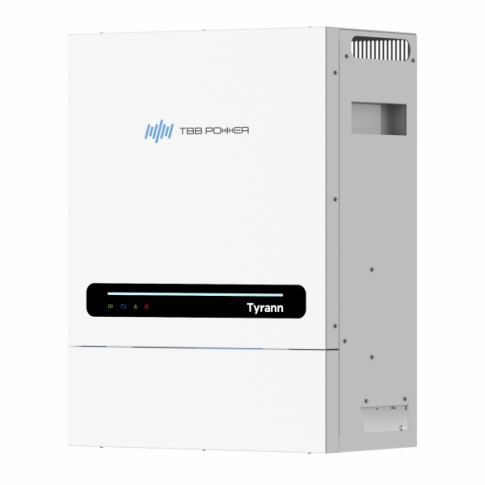

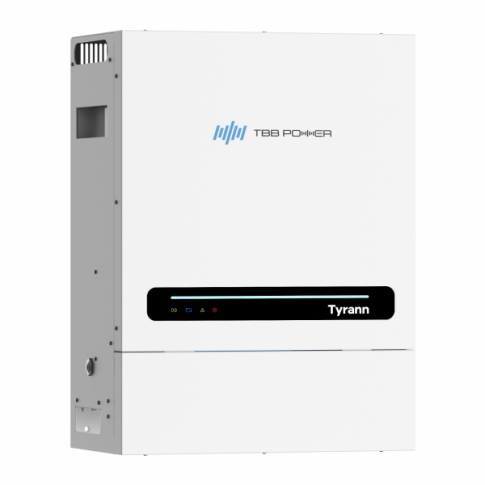

The TBB Tyrann is a heavy-duty, transformer-based inverter charger designed for reliable backup power, off-grid applications, and adaptable Energy Storage System (ESS) setups. Built for durability, it offers dual AC inputs and outputs, automatically switching to the most reliable power source. Its ultra-fast 0ms transfer time to battery power ensures seamless operation during power interruptions, making it ideal for installations in off-grid homes, remote properties, cabins, and other critical applications.

Key Features:

1. Ultra-fast 0ms transfer to battery power: The Tyrann’s instant transfer speed guarantees uninterrupted power, seamlessly switching to battery power in zero milliseconds to keep connected devices running smoothly without any delay.

2. High-surge pure sine wave inverter: Delivers stable 230V AC output with high surge capacity, providing the pure sine wave quality required for sensitive electronics and high-demand appliances.

3. Enhanced flexibility: The Tyrann can be configured in parallel with up to 3 units in singles phase applications, or up to 9 units in three-phase applications, achieving a maximum output of 90kVA. This inverter features dual AC inputs and outputs, this allows for maximum flexibility for both on-grid and off-grid applications.

4. ESS and grid-tie capabilities: The Tyrann inverter seamlessly integrates with the E4 LCD Monitor and IC-METER, unlocking advanced Energy Storage System (ESS) and grid-tie functionalities. This allows for real-time monitoring, efficient energy management, and smooth interaction with the grid, ensuring a versatile and future-ready power solution.

5. 100A transfer switch: The AC transfer switch inside the Tyrann is rated up to 100A, allowing for up to 23.0kW of power to be passed through to the loads from the AC input when the inverter is in bypass.

Additional Intelligent Features:

• Customizable settings: Easily adjust parameters such as battery type, AC input range, charging current, high/low voltage disconnect, charging stages, auto-restart, and power-saving modes through an intuitive interface.
• LCD monitoring screen: The optional E4 LCD Monitor displays real-time data including voltage, frequency, battery levels, and load percentages, making it simple to monitor performance and adjust settings.
• Integrated load management system: Manages power distribution across connected devices, optimizing energy use and preventing overloads for reliable, balanced performance.
• Advanced communication and remote monitoring: Users can easily monitor performance through the Nova Web and mobile app via the TBB-KIN2 Kinergy-II Wi-Fi module, this allows for control and adjustments from anywhere.
• Advanced battery management: Compatible with various lithium and lead-acid (GEL/AGM) batteries, featuring overcharge protection, AGS (Automatic Generator Start), and power assist, providing seamless power support across different applications.
• Intelligent cooling design: Predictive fan control adjusts speed based on load and temperature, ensuring optimal performance while extending component lifespan.

Compatibility: The Tyrann inverter is compatible with up to 600V external  MPPT solar charge controller (not included), allowing users to integrate solar energy into their power system.

For users prioritizing reliability and ultra-fast power transfer, the Tyrann inverter offers a rugged, adaptable power solution for critical applications and off-grid energy systems.

Click on the Details and Specifications tab for more information.

Inverter specifications:

• Nominal battery voltage: 48V
• Continuous power output: 10000VA (220-240V AC)
• Maximum output power: 10000W
• Peak power: 30000W
• AC Output frequency: 50/60Hz
• Output waveform: Pure sine wave
• Maximum AC charging current: 140A
• AC transfer current: 100A
• Auxiliary AC output current: 50A
• Peak efficiency: 96%
• Zero load power: 40W
• Transfer time: 0ms
• Protection index: IP21
• Operating temperature: -40°C to 65°C
• Humidity: 95% without condensation
• Altitude: <3500m
• Size: 672 x 498 x 290 mm
• Weight: 74 kg

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

This product comes with a detailed user manual which explains wiring and operations (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for TRN-48-10K TYRANN Inverter Charger

Datasheet for TRN-48-10K TYRANN Inverter Charger
