Photonic Universe is an official distributor of products from Victron Energy - the globally renowned manufacturer of high quality hybrid power electronics. Victron Energy products have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

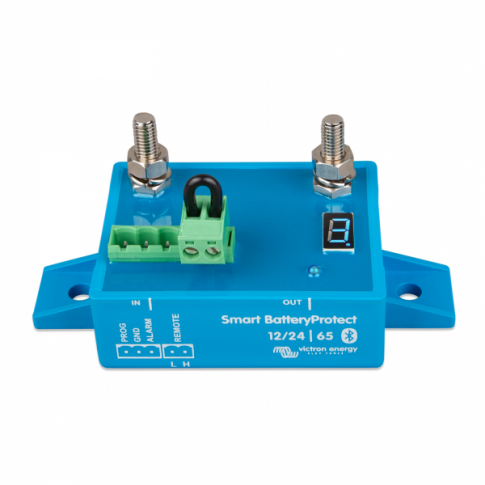

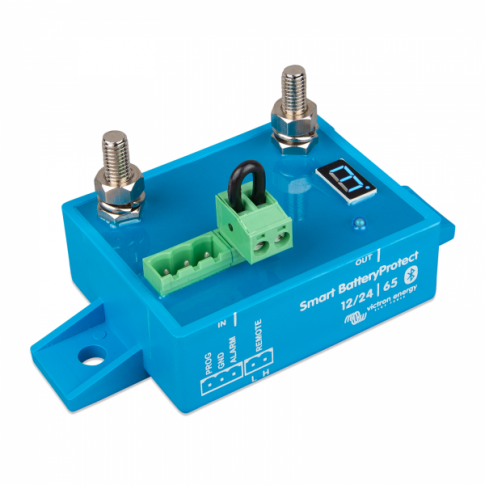

This Victron 65A 12/24V automatic smart battery protector offers protection for the discharging of your battery system, preserving your battery health and protecting appliances.

Features:

• Low voltage disconnect: when battery charge is low, the Smart BatteryProtect disconnects the battery from nonessential loads to avoid deep discharge and preserve battery health.

• Programmable low-voltage threshold: easily customise the disconnect threshold based on discharging needs.

• Overvoltage disconnect: when battery voltage gets too high, the Smart Battery Protect disconnects the loads to protect them from damage.

• Bluetooth connectivity: connect your smartphone for easy programming of the voltage settings.

• Automatic system recognition: the Smart BatteryProtect detects the system voltage (12V or 24V) on start-up, allowing easy installation and setup.

• Ultra-low current consumption: avoid further drain on the battery to preserve battery level, especially after low voltage disconnect.

• Remote switch and alarm connections: connect input and output relays to control the Smart BatteryProtect remotely, manually turn loads on and off, and use custom alarm systems.

• Compatible with Lithium batteries: specialised modes for use with Ve.Bus Lithium battery management systems, and as a charge interrupter for Lithium charging.

Click on the Details and specifications tab for more information about this product.

System Specifications:

• Nominal battery voltage: 12V / 24V
• Operating voltage range: 6 - 35V
• Maximum continuous current: 65A
• Peak current (30 seconds): 250A
• Current draw: <1.5mA active, <0.6mA during disconnect
• Alarm Relay: 50mA
• Operating temperature range: -40°C to +40°C (up to 60% capacity at 50°C)

Dimensions:

• Dimensions: 40 x 48 x 106 mm
• Weight: 200g

Additional items:

• Negative cable: 50cm length, 1.5mm² cross section
• 2 pin dry-contact socket for remote switch
• 3 pin dry-contact socket for negative cable, alarm and programming input

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

Click on the Installation tab for further instructions.

This unit comes with a detailed user manual which explains connection and operations. A technical drawing of the product dimensions is also available to download in the 'Documents' tab.

Please note:

• The Smart Battery Protect should be connected on the positive battery wire, close to the battery.
• This product is suitable for one-directional current flow only. Do not install in between battery and battery charger except for in specialised systems. See manual for further details.

The following videos provide a brief overview of how to use the BatteryProtect and how to program the settings:

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see our Contact Us page for more information).

The following documents are available to download:

User manual for Victron Smart Battery Protect 65A 12/24V (VE-SBPR65)

Datasheet for Victron Smart Battery Protect 65A 12/24V (VE-SBPR65)

Dimensions diagram for Victron Smart Battery Protect 65A 12/24V (VE-SBPR65)
