Function:

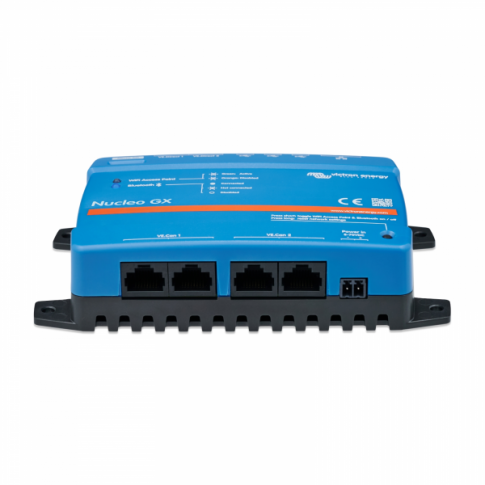

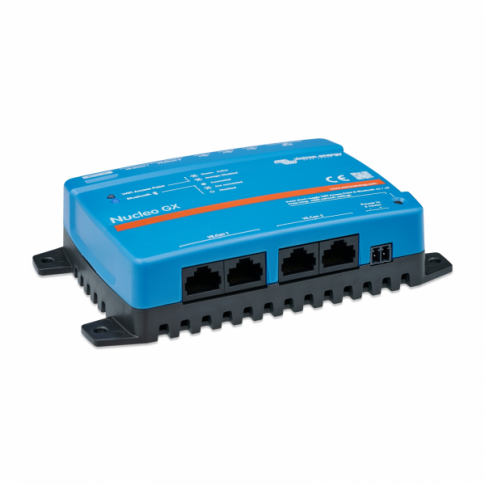

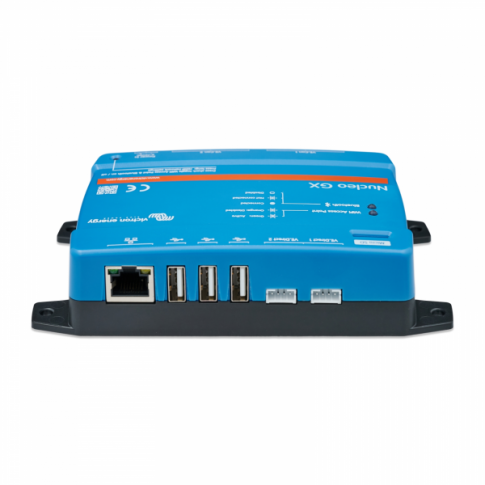

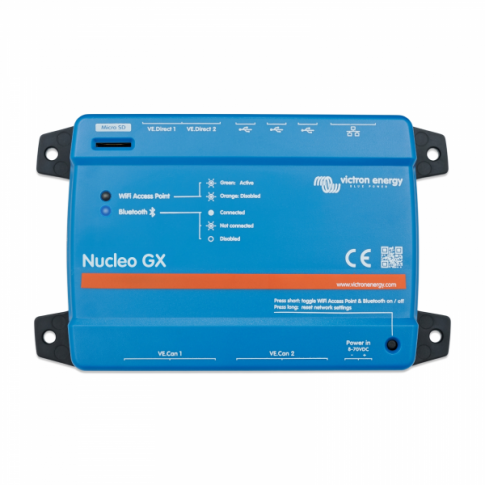

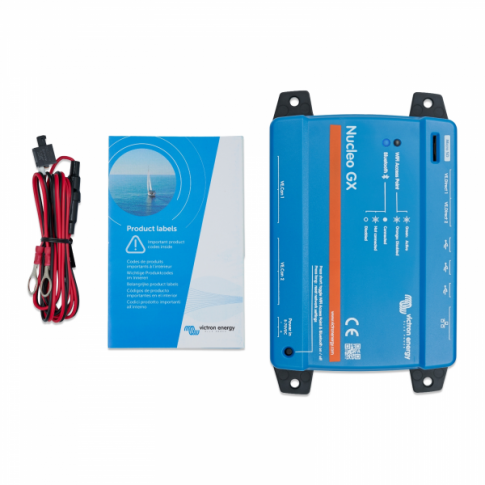

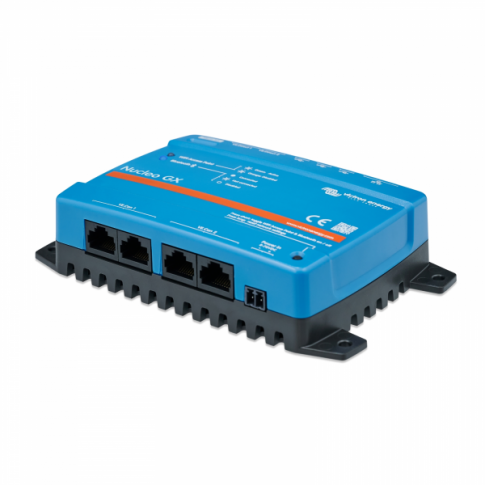

The Nucleo GX is a compact communication centre that provides fast, responsive monitoring and control of your Victron system. It brings high-performance GX functionality to installations that do not require the extensive range of connections found on larger GX devices.

The Nucleo GX is particularly suited to systems built around RS or HS series inverter/chargers connected via VE.Can, as well as simpler installations using one or more solar chargers or a SmartShunt connected via VE.Direct. Its compact design and focused feature set make it an ideal solution for ESS and off-grid systems where a straightforward GX communication centre is required.

The system can be monitored and controlled remotely through the Victron Remote Management (VRM) portal, the VictronConnect app or a web browser.

Key features:

• Fast and responsive performance: Powered by a quad-core processor, the Nucleo GX provides fast system monitoring and control, bringing Ekrano GX-class performance to a more compact and cost-effective GX device.

• System monitoring & control: Monitor battery status, power consumption, PV production and generator or mains input in real time. The Nucleo GX can also manage alerts and provide automated generator start/stop functionality, helping to keep your system operating efficiently.

• Extensive connectivity: The Nucleo GX can connect to multiple Victron devices through VE.Direct, USB and VE.Can. Up to 25 devices can be connected via VE.Direct and USB, with additional devices supported through VE.Can, making it suitable for a wide range of system configurations.

• Expandable connections: Where additional inputs or interfaces are required, the Nucleo GX can be expanded using optional USB accessories. Compatible accessories include the MK3-USB interface, GX I/O Extender 150 and GX Tank 140, providing additional flexibility as system requirements develop.

• Remote monitoring & control: Monitor and manage your installation from anywhere using the Victron Remote Management (VRM) portal, VictronConnect app or a web browser. This allows you to check system performance, view connected equipment and respond to alerts without needing to be physically present at the installation.

• Local display option: For local monitoring and control, an optional Android GX WiFi Display can be added, providing a convenient local interface without requiring a permanently connected display.

• Ideal for ESS and off-grid systems: With its compact design and focused range of connections, the Nucleo GX is particularly well suited to Energy Storage Systems (ESS) and off-grid installations, including systems built around the Multi RS.

The Nucleo GX provides a compact and high-performance solution for monitoring and controlling compatible Victron systems, while allowing additional connectivity to be added where required.

Click on the Details and Specifications tab for more information.

Specifications:

• Supply voltage: 8-70V DC
• VE.Direct ports (always isolated): 2 (max possible VE.Direct devices: 25)
• VE.Bus (always isolated): 2 paralleled RJ45 sockets
• VE.Can: 2 (1 isolated; 1 non-isolated)
• Operating temperature range: -20 to +50°C
• Outer dimensions: 78 x 154 x 48 mm
• Victron product code: BPP900453100

This product is covered by a 5 year manufacturer warranty.

Full details explaining wiring and operations can be found in the user manual supplied with this product (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for Victron Nucleo GX (VE-NUCLEOGX)

Datasheet for Victron Nucleo GX (VE-NUCLEOGX)
