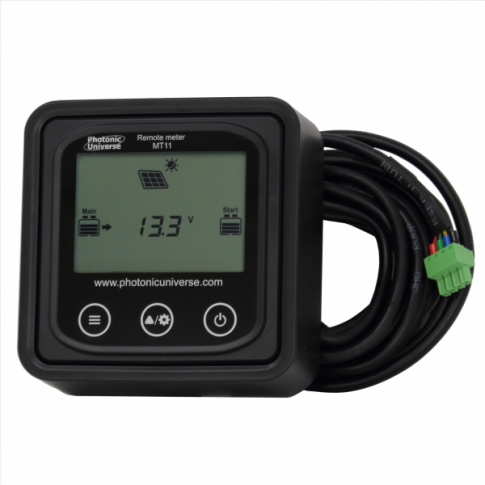

Remote meter/display MT11 with 5m cable for 10A-30A DM series dual battery MPPT solar charge controllers

Remote meter/display MT11 with 5m cable for 10A-30A DM series dual battery MPPT solar charge controllers
Remote meter/display MT11 with 5m cable for 10A-30A DM series dual battery MPPT solar charge controllers

Phone order?

Call our number
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm
Product code:
MT11
Ex. VAT £26.66
Inc. VAT £31.99
Availability:
In stock
Сheck delivery cost
Add to shopping cart



This high quality, brand new remote display / monitor can be used with 10A - 30A dual battery MPPT solar charge controllers/regulators (DM series). The unit displays important charging parameters such as:

  • Battery and solar panel voltages
  • Battery and solar panel current
  • Battery state of charge
  • Accumulated charge and discharge energy
  • Minimum/maximum recorded voltage
  • Temperature (of the controller, or of the battery using an optional external temperature sensor)



This meter allows you to change battery type and capacity, temperature unit, and track and reset the accumulated energy counter.

Compatibility

This meter is only compatible with DM series dual battery MPPT solar controllers:



If you already have one of our DM series dual battery MPPT solar controllers, this remote meter can easily be added at any time to your system - simply connect the cable supplied with the meter to the RS485 socket of the controller.

The removable frame allows for either flush or surface mounting.

Click on the Details and Specifications tab for more information



Specifications:

  • Suitable for 10A-30A dual battery MPPT solar charge controllers DM Series
  • Self-consumption: 4-13 mA (depending on backlight)
  • Operating temperature: -20C to +70C
  • Cable: RS485, 5m included
  • Size (without frame): 98.4 x 98.4 mm (with frame): 114 x 114 mm
  • Weight: 110g



This item comes with a detailed user manual and is covered by a 1 year warranty. For more information please refer to our Terms and Conditions.

Click on the Installation tab for further instructions.



This unit comes with a detailed user manual which explains connection and operations.

Please note:

  • If flush mounted, a recess is required in the mounting wall/ surface.
  • This unit is only suitable for use with DM series dual battery solar charge controllers.



If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).





The following documents are available to download:

User manual for MT11 Remote Meter/Display  for DM series Dual Battery MPPT controllers
