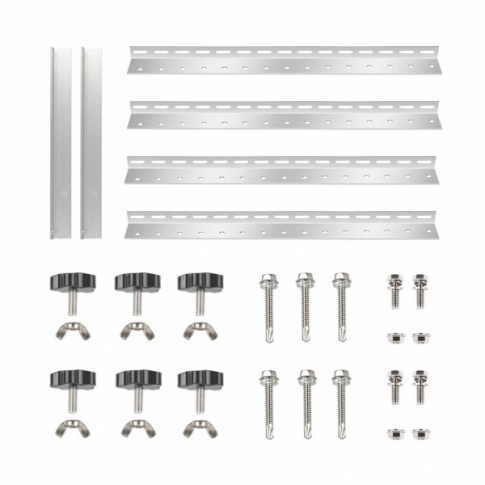

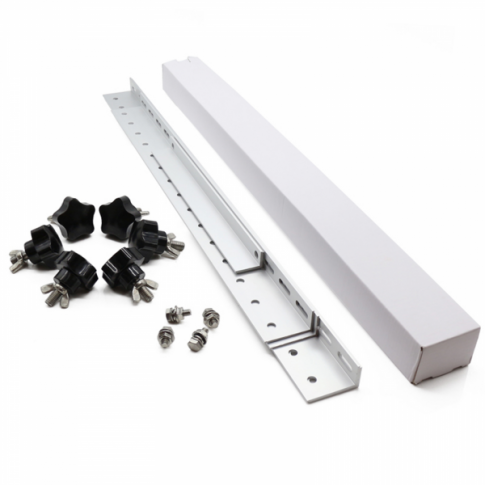

This set includes:

• 4 x Fixed L-brackets (104cm)
• 2 x Tilt L-brackets
• 1 x Screw accessories set

Key features:

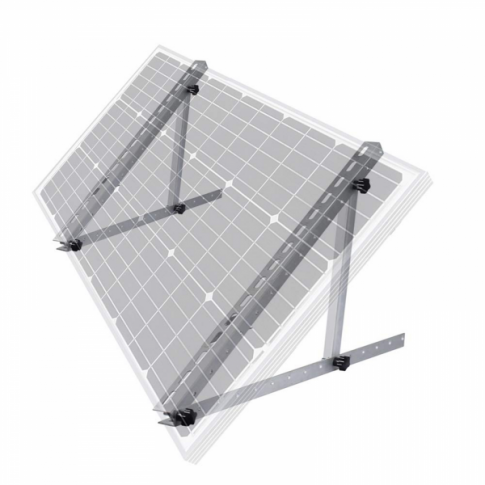

• Suitable for mounting a large solar panel up to 104cm (41 inches) at a 0-90 degrees angle to the surface.
• Rubber pads and screws included for fixing to the surface in a waterproof way.
• Suitable for various flat surface and wall mounted fixed installations.
• Quick and easy to install.
• Made from rust free aluminium.

Please note:

For windy areas and large solar panels, an additional pair of brackets is recommended for added strength and reduced pressure on the solar panel frame.

These brackets are unsuitable for solar panels with a frame depth of less than 30mm.

Click on the Installation tab for more information.

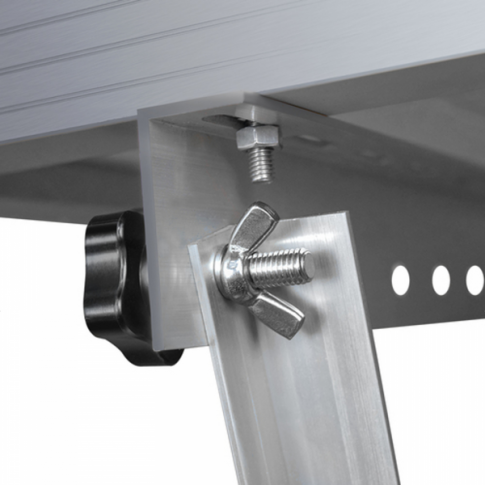

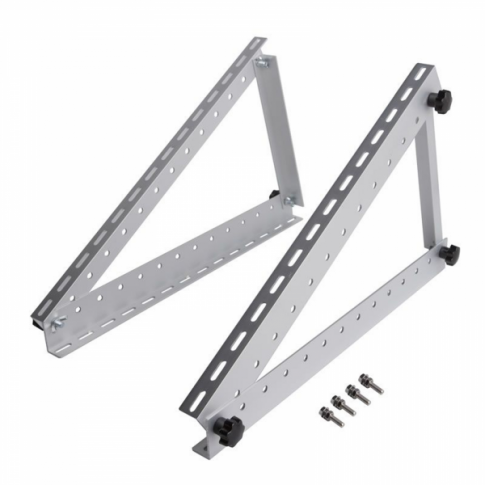

Installation is easy - Simply connect two of the fixed L-brackets to a tilt bracket using the plastic nob screws and wing nuts at your desired angle (Please see pictures for guidance). Then, repeat for the other three brackets. Next, mount the brackets to the chosen surface using the screws and rubber pads provided. Finally, mount the other side to the solar panel using the nuts, bolts, and washers included in the mounting kit.
