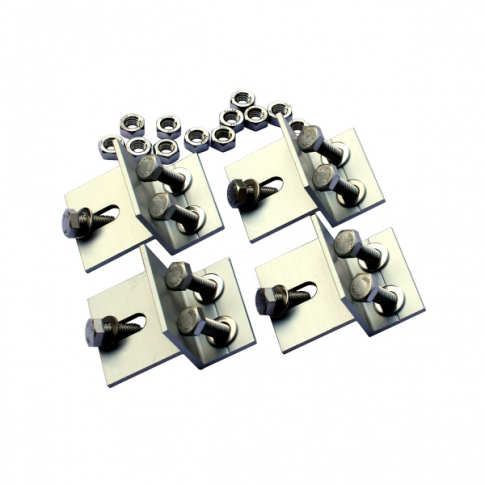

This set includes:

• 4 brackets made of aluminium alloy
• 4 x 20mm M8 bolts
• 8 x 30mm M8 bolts
• 12 x M8 nuts
• 12 x plain washers
• 12 x spring washers

Key features:

• Comes complete with 4 brackets and all bolts, nuts and washers required for mounting
• Specially designed profile and double bolts at the bottom prevent brackets from rotating and becoming loose
• Perfect fit for suitable Photonic Universe solar panels and most other solar panels
• Can be used for fixing solar panels to the roofs of motorhomes, caravans, camper vans, boats or other vehicles
• Made of aluminium alloy for strong and secure fitting of your solar panels

Please note:

The bolts supplied with these brackets are suitable for solar panels with a depth of 30mm or greater, and with mounting holes with a diameter of 8mm or greater.

For solar panels of an insufficient depth, the user can either source alternative bolts or shorten those supplied with the brackets.

Click on the Installation tab for more information

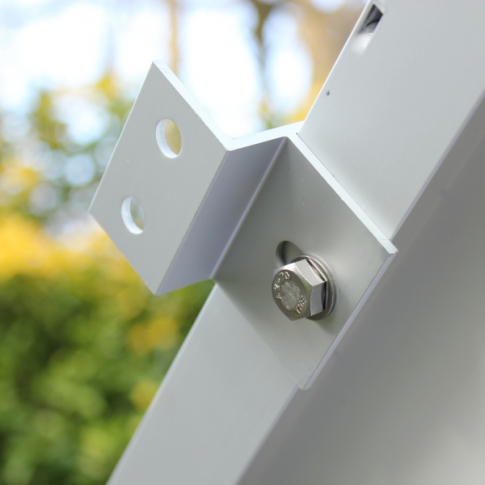

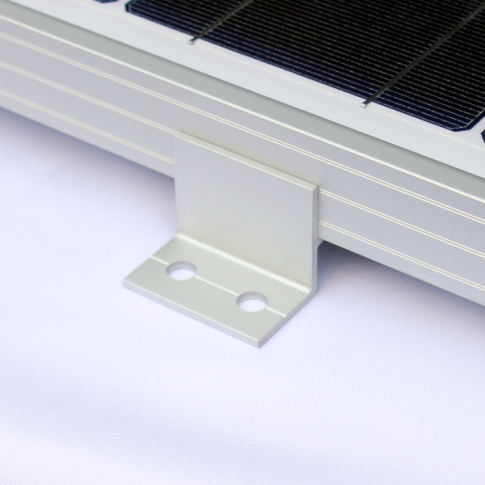

Installation is easy - fix the brackets to your solar panel using the short 20mm bolts, then put the solar panel with brackets on to the flat mounting surface and fix using the long 30mm bolts (see pictures of the brackets fixed to a solar panel).

Please note that these brackets are not suitable for Photonic Universe solar panels smaller than 40W.
