This Premium 3.8kW 48V Complete Grid-Tie Solar Power System is designed with the best-selling solar modules from the world-leading solar manufacturer, LG Solar, and seamlessly integrates with the national power grid, offering a comprehensive solution for users. It is especially beneficial for those with high electricity consumption, such as when using electric and plug-in vehicles, swimming pools, air conditioners, and heat pumps.

By feeding up to 3.8kW of solar power into the a large 24kWh battery bank, this system can significantly reduce electricity bills while providing unmatched versatility. The inverter operates efficiently in grid-tie, hybrid, off-grid, and UPS modes, ensuring uninterrupted power supply even during mains power cuts. Advanced monitoring features enable users to keep track of the battery bank through a mobile app connected via Bluetooth, with optional Wi-Fi connectivity (sold separately) and remote portal monitoring capabilities available for added convenience.

The innovative inverter is fully compliant with G98/G99 standards required for grid-tie installation and is easily upgradable. Users can integrate a separate solar array via an additional MPPT solar controller, which can be added to the system at any time, perfect for more complex roof spaces. Although the kit includes an AGM lead-acid battery bank, it is also compatible with Lithium batteries, allowing for greater flexibility in storage options.

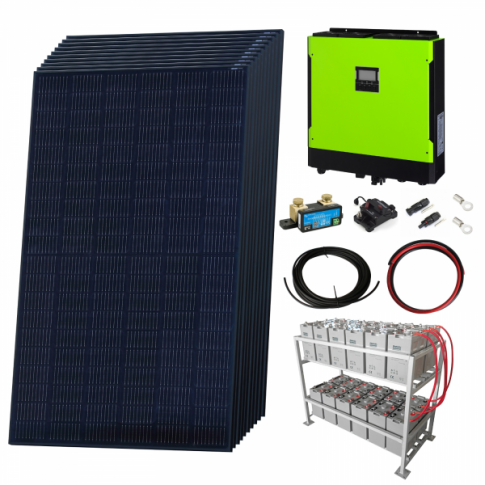

Kit includes:

• 10 x 380W black LG monocrystalline solar panels each with Cello technology™ and 2 x 1.2m high quality solar cable and MC4 connectors
• 5.5kW 48V hybrid solar pure sine wave inverter
• 24kWh 48V 500Ah battery bank - comprised of 24 x 2V AGM batteries
• Battery measurement smartshunt with inbuilt bluetooth
• Automatic circuit breaker
• 25m 4mm² solar extension cables
• A pair of T4 solar connectors
• 2 x 1m of 50mm² tinned copper battery cables
• Loose ring terminals

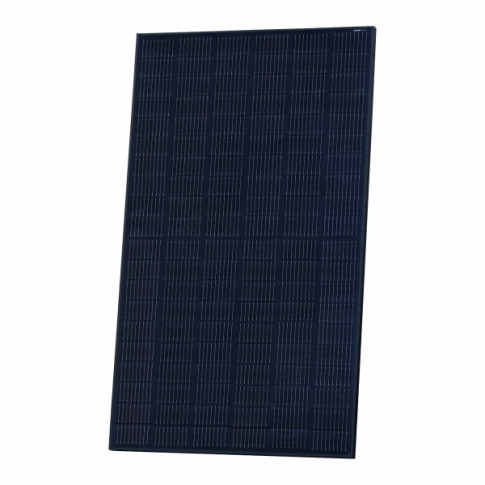

10 x 380W Black LG Monocrystalline Solar Panels with Cello technology™:

The exclusive Cello Technology™ enhances efficiency and reliability of these panels by replacing the small number of wide busbars in standard solar panels with nine thin wires. With decreased spacing between wires, electrical losses are reduced by giving electrical current a shorter path to travel. Cylindrical cross-section keeps resistance low while deflecting more light onto the solar cell, unlike flat busbars which reflect light that hits them away from the panel. The tight layout of the wires also gives electricity multiple paths, enhancing long-term reliability through added redundancy.

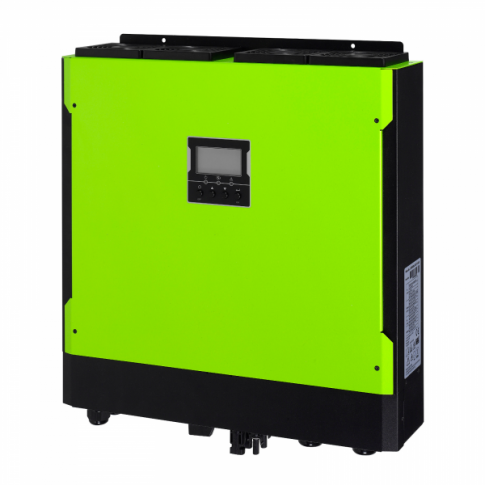

5500W 48V Iconica Hybrid Inverter:

Using a Grid-tie operation with battery backup offers significant advantages over standard grid-tie inverters by ensuring uninterrupted power and reducing electricity costs. During power outages, standard grid-tie inverters shut down completely, leaving users without electricity and wasting solar energy. In contrast, this advanced inverter utilises stored battery power to maintain an uninterrupted power supply (UPS), keeping appliances running and continuing to harvest energy from solar panels. As electricity prices rise and subsidies for grid-fed power decrease, maximising self-consumption becomes crucial. The system can prioritise using stored solar energy with 'peak' and 'off-peak' settings to restrict mains power usage during periods where electricity cost is higher, thereby reducing reliance on the grid and lowering overall electricity costs. This approach ensures that solar energy is effectively utilised, enhancing both energy independence and cost efficiency.

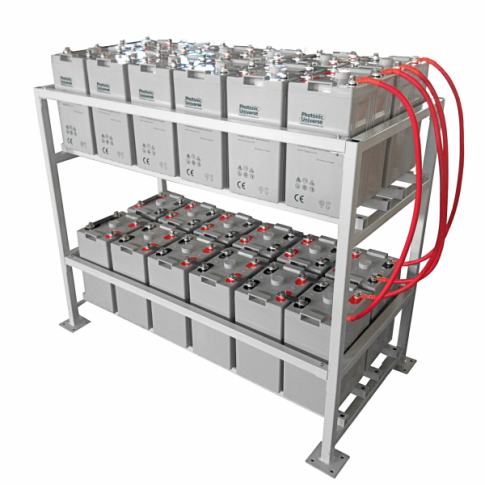

24kWh 48V 500Ah AGM Battery Bank:

The advanced 48V 500Ah battery bank included in this kit is comprised of 24 x 2V high quality AGM batteries, complete with metal plate connectors for instant connection. Using 2V batteries offers important advantages over battery banks made up of 12V batteries, including a longer service life and deeper discharge capability.

Additional items:

This kit also includes 1m positive and negative 50mm² tinned copper battery cables with loose ring terminals for connecting the inverter to the battery bank, an automatic circuit breaker for use between the hybrid inverter and the battery bank, 25m solar extension cable and T4 connectors to connect to the existing 1m of solar cable fitted to the solar panels.

Click on the Details and Specifications tab for more information about this kit.

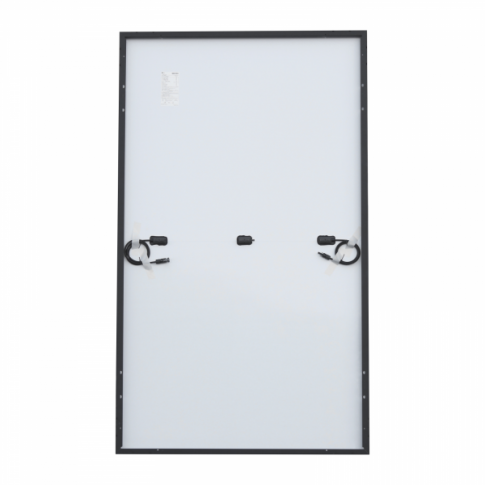

Solar panel specifications (per solar panel):

• Peak power: 380W
• Maximum power voltage: 35.2V
• Maximum power current: 10.83A
• Open circuit voltage: 41.7V
• Short circuit current: 11.43A
• Power tolerance: 0 ~ +3%
• Dimensions: 1768 x 1042 x 40 mm
• Weight: 18.5 kg
• Mounting holes for ease of installation
• 2 x 1.2m of high quality single core solar cable 4.0mm² cross section
• Male and female MC4 waterproof connectors

Hybrid inverter specifications:

• Nominal battery voltage: 48V
• Continuous power output: 5500W / 5500VA (220-240V AC)
• Surge power: 11000VA
• Output frequency: 50Hz /60Hz
• Output waveform: Pure sine wave
• Maximum solar input power: 6500W
• Maximum open circuit solar input voltage: 500V
• Solar MPPT operating voltage: 120-450V DC
• Maximum solar input current: 13A per MPP tracker
• Maximum AC input current including bypass: 40A
• Maximum battery charging current from AC: 60A
• Maximum combined charging current from solar / AC: 60A
• Peak efficiency: 93%
• Solar / AC charger max efficiency: 98%
• Operating temperature: -10°C to 40°C
• Size: 110 x 450 x 445 mm
• Weight: 16 kg

Battery bank specifications (per 2V battery):

• Nominal voltage: 2V
• Nominal capacity: 500Ah (10h rate) / 508Ah (20h rate)
• Maximum charging current: 100A
• Cycle lifetime at 30% D.O.D.: 1200
• Pressure control: safety valve installed
• Terminal type: M10 bolts
• Operating temperature: from -10C to +40C
• Size: 242 x 174 x 365 mm
• Weight: 27 kg

(entire 24V battery bank):

• Nominal voltage: 48V
• Nominal capacity: 24kWh
• Maximum charging current: 100A
• Charging voltage: cycle use 56.4V, standby use 54.8V
• Temperature compensation: cycle use -120mV/°C, standby use -72mV/°C
• Size: 1290 x 1140 x 670 mm (when positioned in racking)
• Weight: 720 kg (including racking)

Please note: due to our warehouse arrangements, the kit accessories may be shipped from a different warehouse to the solar panels, hybrid inverter, and battery bank, and therefore delivered in a separate package.

The solar panels are covered by a 25 year workmanship warranty provided by LG Solar. In addition, solar cells are guaranteed to produce at least 98.5% of nominal power in the first year after purchase and no more than 0.33% degradation of nominal power each year after until 25 years after purchase, for a minimum of 90.6%.

The batteries are covered by a 1 year warranty provided by Photonic Universe. In the unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). The hybrid inverter is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.

For installation advice, please click on the Installation tab.

We can offer a detailed wiring diagram and full technical support for installations and settings upon request. Additionally, an optional mounting system is available separately at extra cost, suitable for various types of roofs and mounting surfaces.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

Datasheet for LG NeON® 2 380W black monocrystalline solar panel LG-380MB

Guarantee for LG NeON® 2 380W black monocrystalline solar panel LG-380MB

User manual for Iconica 5500W 48V grid-tie/ off-grid hybrid power inverter ICGT-IFS5500-48

User manual for Photonic Universe 48V 500AH AGM battery bank (AGM500AH-24SETR)

Metal racking assembly & installation manual for Photonic Universe 48V 500AH AGM battery bank (AGM500AH-24SETR)
