Switches
200A 48V surface and panel mount battery isolator switch with M8 terminals for 2 batteries
Phone order?
0203 150 1111
and quote the product code below

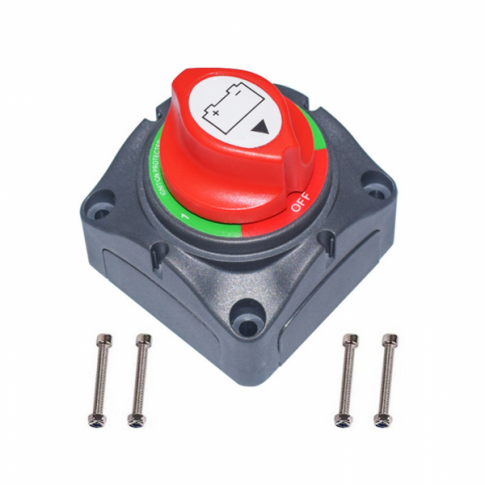

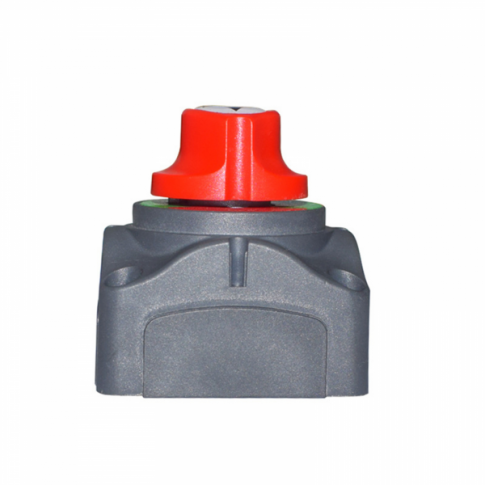

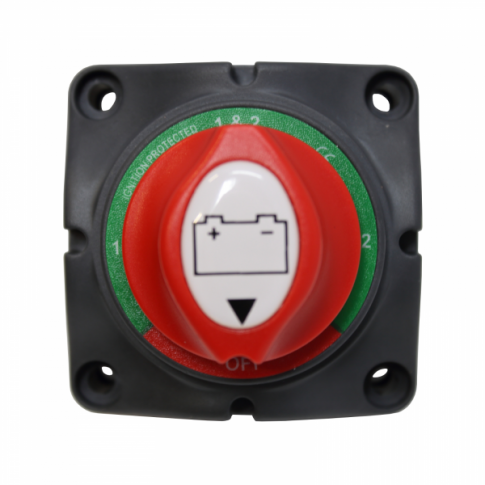

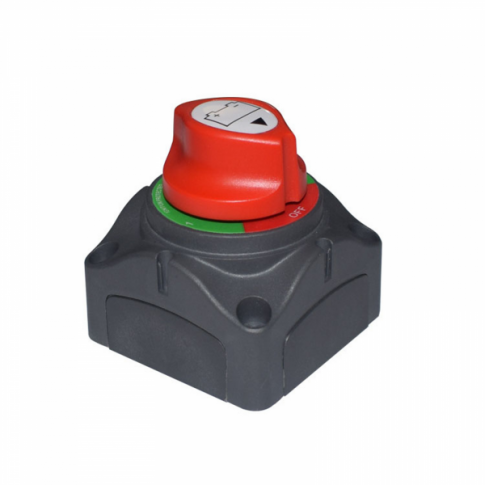

This high-quality 200A 48V manual battery isolator switch for 2 batteries enables quick and reliable isolation of the battery inputs from the rest of the system. Available switch positions are 1, 1&2, 2 and OFF and these positions are marked on the switch bezel.
When in the "1" position, battery 1 will be connected to the system but not battery 2, in the "1&2" position, both batteries will be connected to the system, when in the “2” position, battery 2 will be connected to the system but not battery 1, and when in the "OFF" position, both batteries will be disconnected from the system.

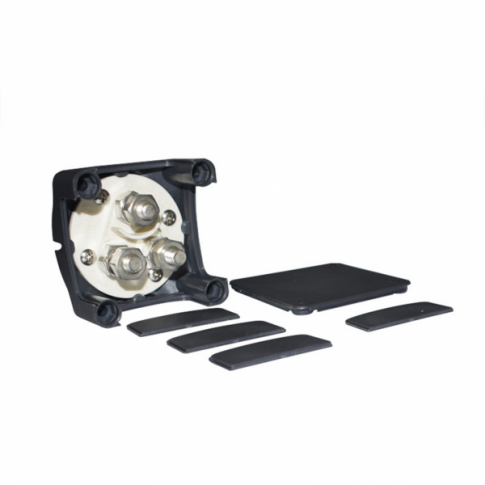

Designed and manufactured to the highest quality standards, this unit is an ideal solution for easy-to-reach disconnection of your battery power supply from the inverter/regulator. Additionally, the unit features M8 screw terminals and 4 mounting holes and for ease of installation.
Click on the Details and Specifications tab for more information
Specifications:

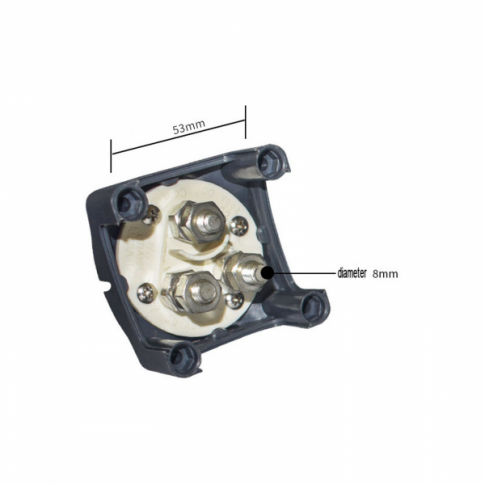

- Screw terminals: M8
- Rated current: 200A

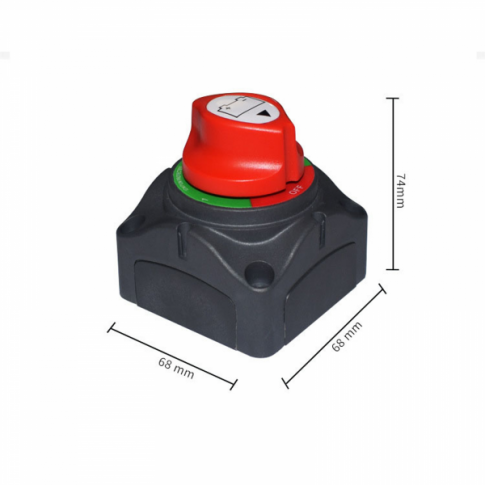

- Dimensions: 74 x 68 x 68 mm
This product is covered by a 1-year manufacturer warranty. For more information please refer to our Terms and Conditions.
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
