This high efficiency 200W 12V charging kit is perfect for permanent outdoor use to provide free electricity for charging a 12V battery to power various devices for many applications such as in a camper van, boat, shed or farm.

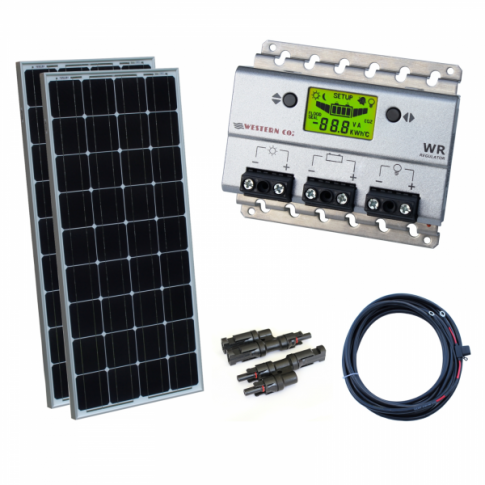

Solar kit includes:

• 2 x 100W monocrystalline solar panel with 5m cable

• Premium 30A 12V/24V solar charge controller with LCD display

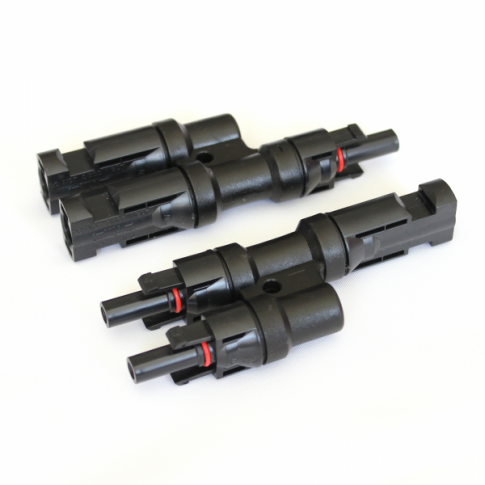

• Pair of T-MC4 cable adapters

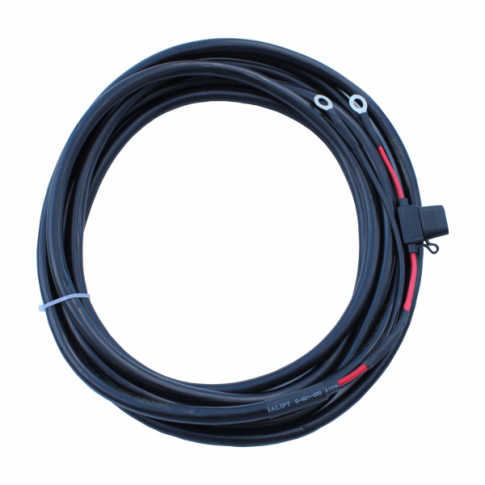

• 5m 6mm² single core red and black battery cable with 20A fuse

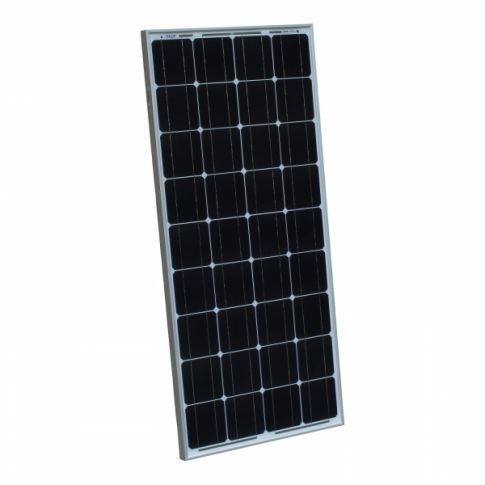

2 x 100W monocrystalline solar panel with 5m cable:

This waterproof, affordable, high efficiency Photonic Universe 100W monocrystalline solar panel is perfect for permanent outdoor use to provide free electricity to charge a 12V battery to power hundreds of devices and electrical appliances.

The long-lasting monocrystalline solar cells and the tough, sealed, aluminium frame will provide years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions.

The panel is fitted with 5m of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection to other solar panels. The MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller.

Each individual solar panel is thoroughly tested to the highest quality standards, and labelled with a unique serial number for further quality control and increased warranty protection.

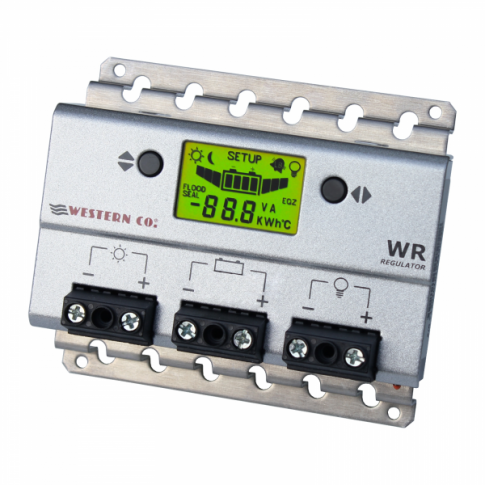

Premium 30A 12V/24V solar charge controller with LCD display:

This 30A 12V/24V solar charge controller has been designed and produced in Italy by one of the leading European solar technology manufacturers, in accordance with the highest quality standards.

This solar charge controller uses PWM (Pulse Width Modulation) technology to improve charge acceptance and extend the life of your battery. PWM technology can also recover some lost battery capacity.

Key features:

• Complete electronic protection of your battery and system, e.g. prevention of: current back-flow, overcharge / discharge, overvoltage, overload, short circuit, and reverse polarity
• LCD display showing advanced system information, including: power, voltage and current for the solar panels and battery, energy counter, temperature, load work
• Pre-set programmes for several battery types (sealed, AGM, gel, flooded lead acid) and fully adjustable low-voltage battery protection
• 100% designed and made in Italy to the highest quality standards, with a 5 year manufacturer warranty

This unit is compatible with sealed, gel and flooded lead acid batteries. It has pre-set charging programmes for different battery types, and battery low voltage protection can be also configured according to your requirements. Load working modes can be programmed for many different applications; for example to set on/off timers for lighting/ fans/pumps.

Additional items:

This kit also includes 5m 6mm² battery cable with 20A fuse for connecting the controller to a battery bank and a pair of T-MC4 connectors to connect to the existing solar cable fitted to the solar panels.

Click on the Details and Specifications tab for more information

Solar panel specifications:

• Peak power: 100W
• Maximum power voltage: 19.3V
• Maximum power current: 5.18A
• Open circuit voltage: 22.9V
• Short circuit current: 5.56A
• Power allowance range: 0~+3%
• Dimensions: 1200 x 540 x 30 mm
• Weight: 8.5 kg
• 4 mounting holes
• 2 x 5m of high quality single core solar cable (4.0mm² cross section) with MC4 connectors attached

Controller specifications:

• Fully automated operation and auto 12V/24V selection
• Rated charging and load current: 20A
• Enhanced monitoring and charging / load work control
• Maximum solar panel input voltage 55V
• 3 pairs of terminals (input, battery, load) for wire up to 10mm2
• Temperature sensor: built in
• Full set of electronic protection functions
• Self-consumption: 8mA
• Working temperature: -10C to +60C
• Size: 15 x 12 x 5 cm
• Weight: 500 g
• Multiple mounting holes for ease of installation

Please note: due to our warehouse arrangements, the solar charge controller and accessories may be shipped from a different warehouse to the solar panel and therefore delivered in a separate package.

The solar panel in this kit is covered by a 1 year warranty and the solar charge controller is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

Technical drawing of 100W monocrystalline solar panel SPA-100M

User manual for 20A 12 / 24V solar charge controller (WREG20)
