This Photonic Universe 1.5kW 48V Off-Grid Solar Power Kit is the perfect ready-to-use kit for off-grid applications requiring a reliable and constant source of power for household appliances or industrial equipment in areas without access to or without stable mains electricity. This kit can provide power to small and medium household or office appliances such as a fridge, TV, radio, lights, computer, hoover, microwave or a kettle, as well as certain high power appliances such as power tools or a washing machine. This may vary significantly according to the location and season.

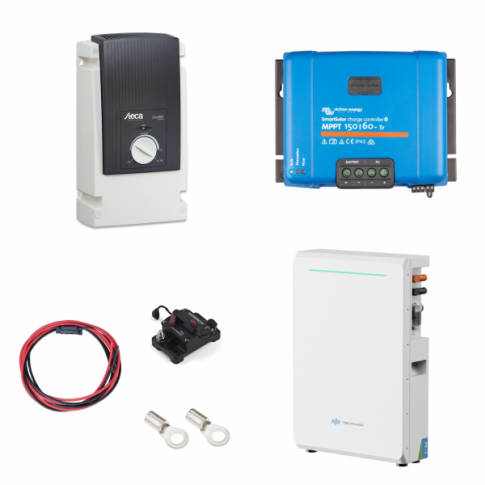

The solar kit includes:

- Steca Solarix 1500W 48V pure sine wave power inverter 230V AC output

- Victron SmartSolar MPPT 150/60 solar charge controller with in-built bluetooth

- PS5 48V 105Ah 5.04kWh TBB Power wall mounted Lithium Battery

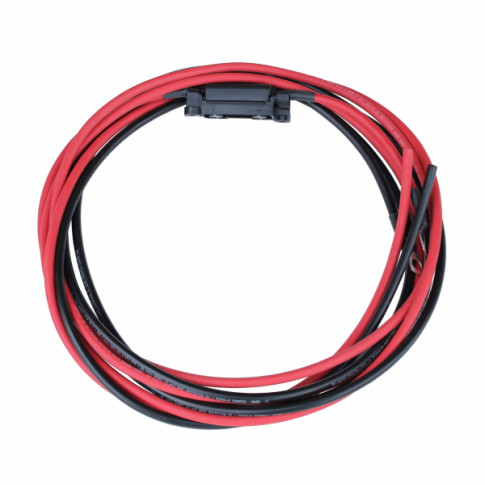

- 3m 16mm² single core red and black battery cable with 60A fuse and ring terminals

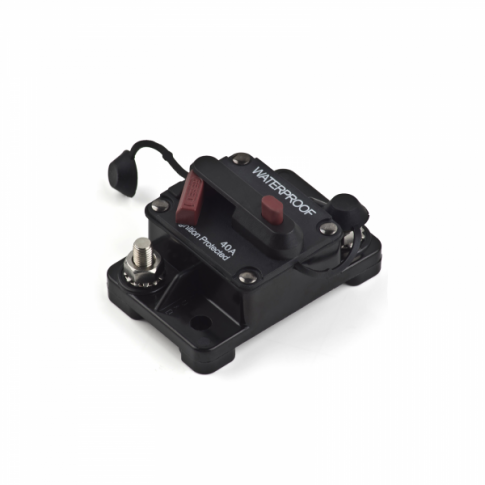

- 40A circuit breaker

- 2 x ring terminals

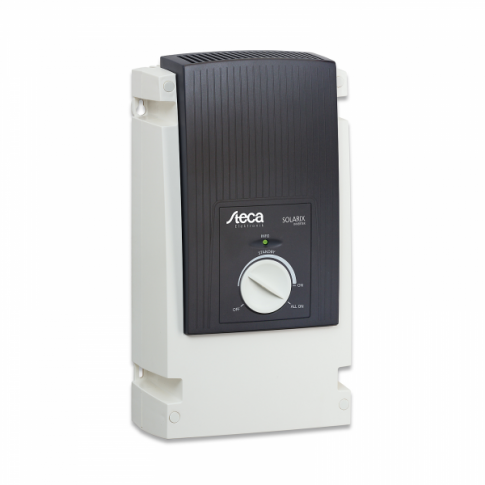

Steca Solarix 1500W 48V pure sine wave power inverter 230V AC output:

All Steca inverters are specifically designed with power loss minimisation in mind. Innovative engineering ensures that this Steca Solarix 1500W 48V pure sine wave inverter has incredibly high power conversion efficiency which significantly outperforms most other inverters. With the development, production, and testing stages conducted in their German manufacturing facility and all products supported by a 5 year warranty, Steca products are truly "100% made in Germany" to the highest European quality standards.

One of the key energy saving features of this inverter is the 'sleep mode' personalisation function. The dial on the front of the inverter allows the user to select a threshold at which the inverter will exit standby mode and enter full power mode. For example, if 'low sensitivity' is selected, the inverter will only wake up from standby mode when a high-power load is connected. This intelligent function is unique to Steca inverters and drastically minimises any energy loss from your solar system. This unit has an incredibly low standby power consumption of 0.7W and an impressive operational efficiency of up to 94%.

This product also has the unique ability to be connected in parallel on the AC output side with up to three other Steca Solarix PI inverters, offering multiple possibilities for future system expansion. In order to achieve this, the inverters will need to be linked using the Steca PA Link parallel switch box (sold separately). Adding one more inverter increases the nominal power from 1500W to 3000W, adding two inverters increases it to 4500W etc.

This product comes with important safety features including protection from over-discharge, overload, short-circuiting, over-heating and reverse polarity. The device also features a multi-coloured LED light to show system status and alert the user of any faults. The in-built automatic fan operates only when required to prevent overheating and keep noise to a minimum.

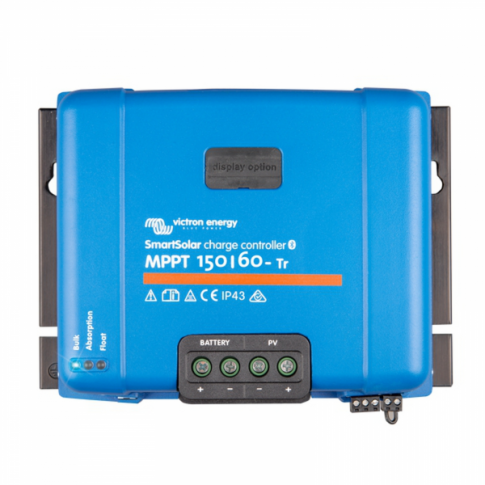

Victron SmartSolar MPPT 150/60 solar charge controller with in-built bluetooth:

The Victron 150V 60A MPPT SmartSolar charge controller is an advanced solar charge controller designed to maximize energy harvest while ensuring optimal battery health. It features ultrafast Maximum Power Point Tracking (MPPT) technology, which adjusts to varying sunlight and temperature conditions to optimize solar panel performance, yielding up to 30% more energy than PWM controllers and up to 10% more than slower MPPT models. The SmartSolar range also includes built-in Bluetooth for seamless monitoring and programming through the VictronConnect App on any Bluetooth-enabled device. Additionally, the controller includes a programmable relay for flexible system integration.

The SmartSolar controller excels in safety, equipped with protections against PV short circuits, reverse polarity, overvoltage, overcurrent, and overheating, among others. Sophisticated fault-targeting technology signals system errors via high-intensity LED indicators. The VictronConnect App further enhances user experience by providing real-time system data, 30-day activity logs, and customizable battery charging algorithms. The app is available on mobile devices and PCs (via a VE Direct USB cable), offering comprehensive system insights and control for advanced users.

Optional add-ons, such as a plug-in LCD display and an MPPT control panel, provide additional monitoring and programming capabilities. These accessories allow users to view key charging parameters, 30-day performance data, and system faults while enabling personalized load and charging settings. Designed for diverse applications, the SmartSolar controller is robust, with IP43 water resistance and resilience to extreme temperatures, high altitudes, and harsh environments, making it a versatile and durable solution for solar energy systems.

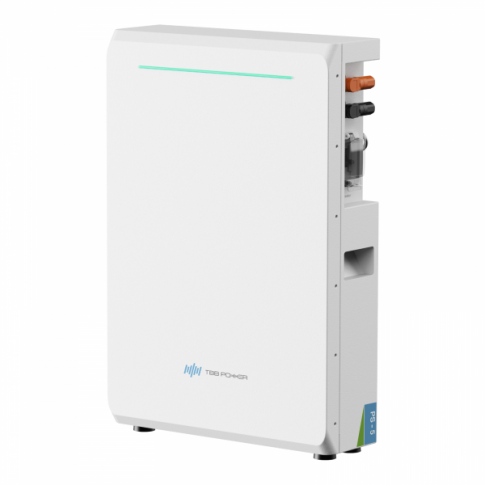

PS5 48V 105Ah 5.04kWh TBB Power wall mounted Lithium Battery:

The PS5 or Power Stack 5 is TBB Power's latest 48V lithium battery packs, designed to deliver high energy density and exceptional performance for residential and commercial applications. With a compact design and long cycle life, this battery pack offers an ideal solution for your energy storage needs.

Key features:

• High capacity and power output: Engineered to provide large capacity and high-power output, making them suitable for a variety of energy-intensive applications.
• Safe and reliable: Utilises lithium iron phosphate (LiFePO4) cells known for their safety and high energy density, ensuring reliable performance over time.
• Modular design: The PS5 supports up to 32 units in parallel, allowing for flexible capacity expansion to meet diverse energy demands.
• Space-saving installation: Supports both floor-mounted and wall-mounted installations, optimizing your available space and enhancing convenience.
• Cost-effective integration: High integration design reduces installation costs and simplifies wiring processes for easier setup.
• User-friendly features: Each battery pack comes with a mounting bracket for easy installation and handles on both sides for convenient transportation.
• Built-in safety mechanisms: Equipped with a built-in circuit breaker for over-current protection, ensuring safe operation.
• IP65 protection rating: Suitable for both indoor and outdoor use, providing durability and reliability in various environments.
• Compatibility: Features perfect compatibility with mainstream inverters, supporting CAN and RS485 communication for seamless integration.
• Real-time monitoring: Monitor battery status remotely through the NOVA APP & Web and locally via the optional TBB-E4 LCD Monitor (sold separately) and , ensuring you stay informed about your energy usage.

Additional items:

This kit also includes 3m 16mm² red and black battery cable with 60A fuse, a 40A circuit breaker and two ring terminals.

Click on the Details and Specifications tab for more information.

Inverter specifications:

• Continuous power: 900 VA
• Surge power: 1500VA (30 mins) / 2800 VA (5 seconds)
• Input: 42V - 64V
• Output: 230V AC
• Output frequency: 50 Hz
• Output waveform: pure sine wave
• Peak efficiency: 94%
• Self-consumption: 0.7W (standby), 10W (in use)
• Operating temperature: 0 C - +50 C
• Cable lengths: 1.5m (battery cable and AC)
• Enclosure: IP20
• Size: 212 x 395 x 130 mm
• Weight: 9 kg

Controller specifications:

• The most advanced MPPT technology to ensure high efficiency (> 95%) of your solar system
• Fully automated operation and auto 12 / 24 / 36* / 48V selection
• 2 pairs of terminals (solar panel, battery) for wires up to 35mm2
• Inbuilt bluetooth
• Programmable relay: AC rating: 240VAC /4A , DC rating: 4A up to 35VDC, 1A up to 60VDC
• Max solar panel voltage: 150V
• Max solar panel power: 860W (12V) / 1720W (24V) / 2580W (36V) / 3440W (48V)
• Temperature sensor for automatic compensation (-16mV / -32mV / -48mV / -64mV / °C)
• Comprehensive electronic protection features
• Communication port: RS232 / TTL for VE Direct accessories
• Self-consumption: <35mA (12V) / <20mA (48V)
• Working temperature: -30°C to +60°C
• IEC/EN certified
• Enclosure: IP43 (electronic components) / IP22 (connection area)
• Pollution Degree rating: PD3
• Dimensions: 185 x 250 x 95 mm
• Weight: 3kg
• 4 x mounting holes (8mm diameter) for ease of installation

Battery specifications:

• Nominal voltage: 48V
• Work voltage range: 42 – 54.75V
• Nominal capacity: 105Ah
• Maximum power: 5.04kW
• Peak current: 120A
• Maximum charge and discharge current: 105A
• Recommended charge and discharge current: 52.5A
• Self-discharging rate: <3% per month
• Cycle life: 6000 (90% DoD, 70% SoH), @25°C, 0.5C
• Operating discharge temperature: from -20°C to +55°C
• Operating charge temperature: from 0°C to +55°C
• Altitude: <2000m
• Humidity: 95% (without condensation)
• Protection: IP65
• Size: 484 x 725.5 x 195 mm
• Weight: 54.0 kg

Please note: due to our warehouse arrangements, items may be shipped from a different warehouses and therefore delivered in a separate package.

The invetrer, solar charge controller, and battery are covered by a 5 year workmanship warranty. We will repair or replace defective items at our discretion. For more information please refer to our Terms and Conditions.

The inverter and solar charge controller come with a separate instruction manual which explains settings and operation.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

Product Datasheet for Steca Solarix PI500-48 1100W 48V pure sine wave power inverter

User Manual for Steca Solarix PI1500-48 1500W 48V pure sine wave power inverter

User manual for Victron 60A MPPT SmartSolar solar charge controller VSSM150-60

Product datasheet for Victron 60A MPPT SmartSolar solar charge controller VSSM150-60

User manual for the 48V 105Ah TBB Power Rack Mounted Lithium Battery (ES100II)

Datasheet for the 48V 105Ah TBB Power Rack Mounted Lithium Battery (ES100II)
