This Photonic Universe 1.5kW 48V Off-Grid Power Kit is the perfect ready-to-use kit for off-grid applications requiring a reliable and constant source of power for household appliances or industrial equipment in areas without access to or without stable mains electricity. This kit can provide power to small and medium household or office appliances such as a fridge, TV, radio, lights, computer, hoover, microwave or a kettle, as well as certain high power appliances such as power tools or a washing machine. This may vary significantly according to the location and season.

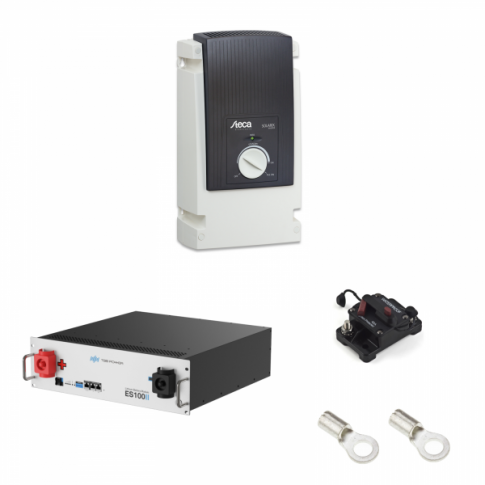

The solar kit includes:

- Steca Solarix 1500W 48V pure sine wave power inverter 230V AC output

- ES100 II 48V 105Ah 5.04kWh TBB Power rack mounted Lithium Battery

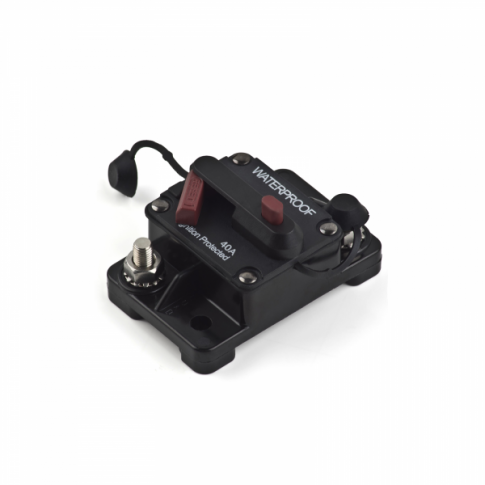

- 40A circuit breaker

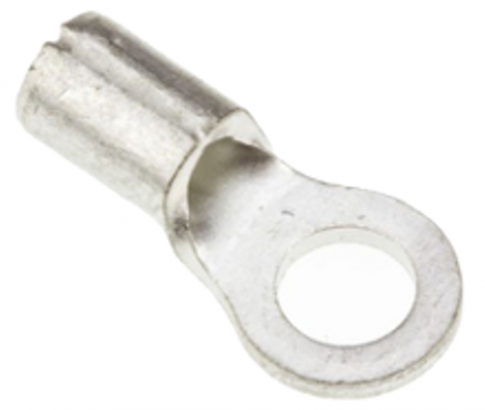

- 2 x ring terminals

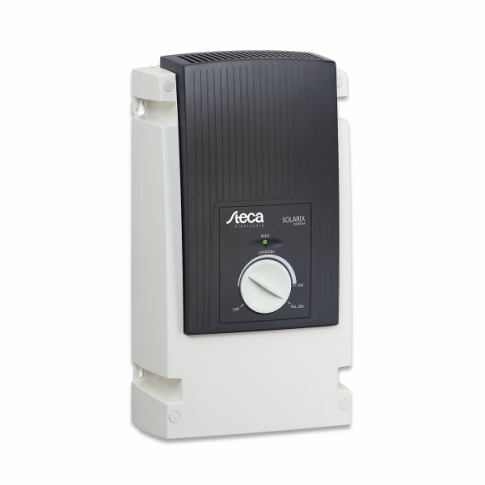

Steca Solarix 1500W 48V pure sine wave power inverter 230V AC output:

All Steca inverters are specifically designed with power loss minimisation in mind. Innovative engineering ensures that this Steca Solarix 1500W 48V pure sine wave inverter has incredibly high power conversion efficiency which significantly outperforms most other inverters. With the development, production, and testing stages conducted in their German manufacturing facility and all products supported by a 5 year warranty, Steca products are truly "100% made in Germany" to the highest European quality standards.

One of the key energy saving features of this inverter is the 'sleep mode' personalisation function. The dial on the front of the inverter allows the user to select a threshold at which the inverter will exit standby mode and enter full power mode. For example, if 'low sensitivity' is selected, the inverter will only wake up from standby mode when a high-power load is connected. This intelligent function is unique to Steca inverters and drastically minimises any energy loss from your solar system. This unit has an incredibly low standby power consumption of 0.7W and an impressive operational efficiency of up to 94%.

This product also has the unique ability to be connected in parallel on the AC output side with up to three other Steca Solarix PI inverters, offering multiple possibilities for future system expansion. In order to achieve this, the inverters will need to be linked using the Steca PA Link parallel switch box (sold separately). Adding one more inverter increases the nominal power from 1500W to 3000W, adding two inverters increases it to 4500W etc.

This product comes with important safety features including protection from over-discharge, overload, short-circuiting, over-heating and reverse polarity. The device also features a multi-coloured LED light to show system status and alert the user of any faults. The in-built automatic fan operates only when required to prevent overheating and keep noise to a minimum.

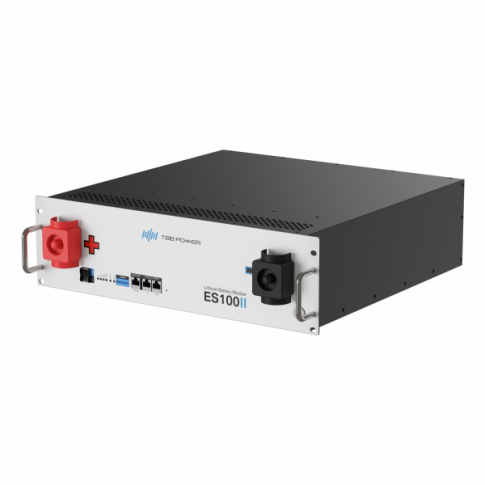

ES100 II 48V 105Ah 5.04kWh TBB Power rack mounted Lithium Battery:

The ES100 II is a state-of-the-art 48V 105Ah lithium battery module from TBB Renewable, designed for backup power systems, solar off-grid applications, and residential energy storage. This module features a high energy density and a sleek, compact design, ensuring safe and efficient energy storage with a long cycling life. With its advanced technology, the ES100 II simplifies installation and enhances overall system performance.

Key features:

• Safe and reliable: Utilises lithium iron phosphate (LiFePO4) cells, providing superior safety and longevity compared to traditional battery technologies.
• Scalable capacity: Supports the connection of up to 32 modules in parallel, allowing for customizable energy solutions to meet varying demands.
• Easy installation: Automatically assigns communication addresses to slave modules, making the parallel connection process straightforward and efficient.
• High performance: Capable of short-time high-current charge and discharge with an impressive 90% depth of discharge (DoD) and a lifespan of up to 6,000 cycles.
• Versatile compatibility: Features external CAN communication and an RS485 communication port for seamless integration with leading inverter brands, including TBB inverters.
• User-friendly design: Equipped with universal positive and negative terminals for hassle-free installation and comes standard with a 300A parallel bus bar.
• Durable protection: The modules are IP20 protected as standard and can be easily fitted to a mounting bracket or rack cabinet (both sold separately). The cabinet meets IP65 protection standards, ensuring reliability in various environments.
• Intelligent management system: Each battery pack includes an advanced Battery Management System (BMS) for effective monitoring and management of modules.
• Convenient handling: Designed with practical pull bars for enhanced ease of operation.

Additional items:

This kit also includes a 40A circuit breaker and two ring terminals.

Click on the Details and Specifications tab for more information.

Inverter specifications:

• Continuous power: 900 VA
• Surge power: 1500VA (30 mins) / 2800 VA (5 seconds)
• Input: 42V - 64V
• Output: 230V AC
• Output frequency: 50 Hz
• Output waveform: pure sine wave
• Peak efficiency: 94%
• Self-consumption: 0.7W (standby), 10W (in use)
• Operating temperature: 0 C - +50 C
• Cable lengths: 1.5m (battery cable and AC)
• Enclosure: IP20
• Size: 212 x 395 x 130 mm
• Weight: 9 kg

Battery specifications:

• Nominal voltage: 48V
• Work voltage range: 42 – 54.75V
• Nominal capacity: 105Ah
• Peak current: 120A
• Maximum charge and discharge current: 105A
• Recommened charge and discharge current: 52.5A
• Self-discharging rate: <3% per month
• Cycle life: 6000 (90% DoD, 70% SoH), @25°C, 0.5C
• Operating discharge temperature: from -20°C to +55°C
• Operating charge temperature: from 0°C to +55°C
• Altitude: <2000m
• Humidity: 95% (without condensation)
• Protection: IP20
• Size: 482.6 x 133.4 x 450 mm
• Weight: 40.0 kg

Please note: due to our warehouse arrangements, items may be shipped from a different warehouses and therefore delivered in a separate package.

The invetrer and battery are covered by a 5 year workmanship warranty. We will repair or replace defective items at our discretion. For more information please refer to our Terms and Conditions.

The solar charge controller also comes with a separate instruction manual which explains settings and operation.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

Product Datasheet for Steca Solarix PI500-48 1100W 48V pure sine wave power inverter

User Manual for Steca Solarix PI1500-48 1500W 48V pure sine wave power inverter

User manual for the 48V 105Ah TBB Power Rack Mounted Lithium Battery (ES100II)

Datasheet for the 48V 105Ah TBB Power Rack Mounted Lithium Battery (ES100II)
