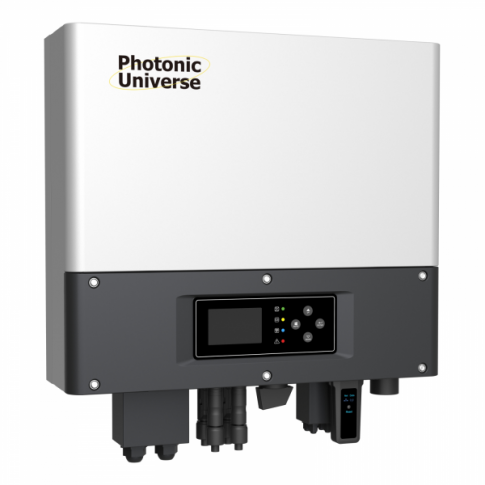

The STG-PH3600-48 is a highly adaptable and efficient bidirectional grid-tie inverter, designed for photovoltaic (PV) systems with integrated battery storage. It intelligently manages solar energy production to maximize self-consumption, store excess energy in batteries, and feed surplus power into the grid when needed.

This inverter provides a reliable and flexible energy solution, seamlessly balancing energy flow between PV systems, batteries, and the grid to reduce electricity costs and ensure energy independence.

Core Features:

• Bidirectional Energy Flow:
  • Automatically balances energy production and consumption.
  • Optimizes self-consumption by prioritizing solar energy and battery usage.
  • Draws from the grid only when PV and battery power are insufficient.
• Flexible Operation Modes: The STG-PH3600-48 operates in five distinct modes, offering a tailored solution for every scenario:
  • Feed Energy to the Grid: Surplus PV and battery power is exported to the grid.
  • Match Load: Powers the loads using PV and/or battery power without grid feed-in.
  • Battery Charge: PV or grid energy charges the batteries while also supplying the load.
  • Standby: The grid takes over load supply if the inverter encounters a fault.
  • Off-Grid: Operates independently of the grid, supplying loads using PV and/or battery power only.
• Dual MPP Trackers: Supports two independent PV arrays for up to 98% solar energy harvesting efficiency.
• IP65 Rated for Outdoor Use: Durable and weather-resistant, this inverter is built to withstand harsh outdoor environments, providing long-lasting performance.
• Wi-Fi Connectivity: Access system settings and monitor energy parameters through the SolarPowerMonitor mobile app for effortless remote management.

Additional features:

• CT Clamp Integration: Enables real-time monitoring of grid energy flow into the house, improving control of battery charge/discharge and maximizing self-consumption.
• User-Friendly LCD Display:
  • Displays essential system information, including power flow, voltage, and current inputs/outputs.
  • Provides intuitive access to configuration settings.
• Peak Power Handling: Supports peak loads of up to 6000VA for 10 seconds, ensuring reliable performance for demanding appliances.
• Fanless design: The fanless design ensures quiet operation while reducing potential maintenance needs.

Who Should Use the STG-PH3600-48?

This grid-tie inverter is ideal for homeowners and businesses looking to:

• Maximize their use of renewable solar energy.
• Minimize reliance on the grid while ensuring power stability.
• Reduce energy costs through intelligent energy management.

Whether you need reliable off-grid power, grid-tie functionality, or battery backup for energy security, this inverter offers the perfect balance of efficiency, flexibility, and advanced technology.

Click on the Details and Specifications tab for more information.

Inverter specifications:

• Rated Power: 3600W
• Nominal Battery Voltage: 48V
• Maximum PV input power for both trackers: 5400W
• Nominal PV operating voltage per tracker: 360V
• Maximum open circuit voltage per tracker: 500V
• Maximum PV input current per tracker: 15A
• Nominal AC output: 3600W
• Nominal AC output current: 15.6A
• Inrush current: 32.6A
• Nominal output voltage: 220V-240V @50/60Hz
• THDi: <3%
• Peak power: 6000VA (10s)
• Maximum charge power: 3600W
• Maximum charge current: 75A
• Operating temperature: -25°C - 60°C
• Protection: IP65
• Altitude: <2000m
• Size: 480 x 420 x 198.7mm
• Weight: 27kg

This product is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.

This product comes with a detailed user manual which explains wiring and operations (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for the 3600W 48V grid-tie/ off-grid hybrid power inverter STG-PH3600-48

User manual for the STG-PH Wi-Fi module
