This Photonic Universe 3kW 48V Off-grid Solar Power Kit is the perfect ready-to-use kit for off-grid applications requiring a reliable and constant source of power for household appliances or industrial equipment in areas without access to or without stable mains electricity. This kit can provide power to small and medium household or office appliances such as a fridge, TV, radio, lights, computer, hoover, microwave or a kettle, as well as certain high power appliances such as power tools or a washing machine. This may vary significantly according to the location and season.

This complete off-grid kit has been expertly designed to maximise efficiency and output and therefore comes equipped with some of our most premium quality products; including seven powerful Sharp 430W solar panels and a premium 60A 48V Morningstar TriStar™ MPPT solar charge controller with remote LCD digital meter.

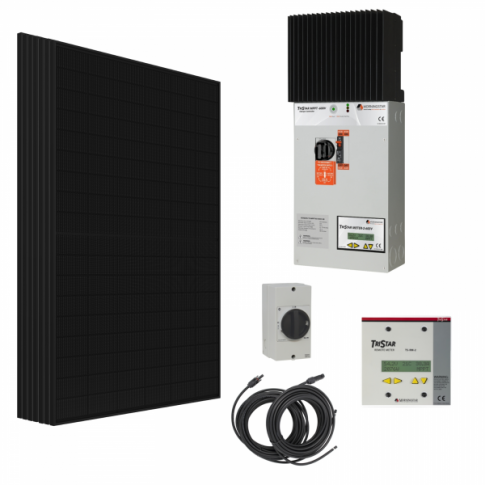

The solar kit includes:

- 7 x 430W black rigid frame Sharp solar panels

- 60A 48V Morningstar TriStar™ MPPT solar charge controller

- Morningstar TriStar remote LCD digital meter

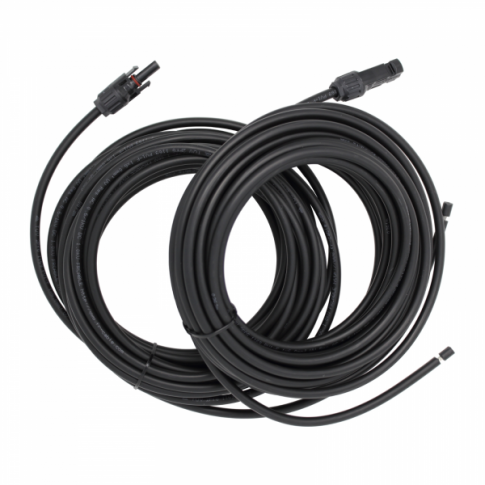

- Pair of 10m single-core 6.0mm² solar cable

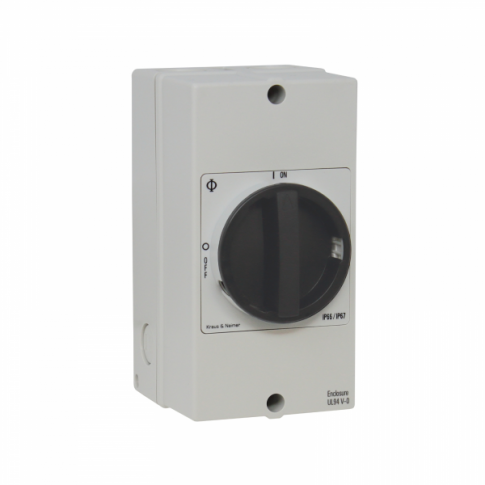

- Kraus & Naimer manual solar DC isolator switch

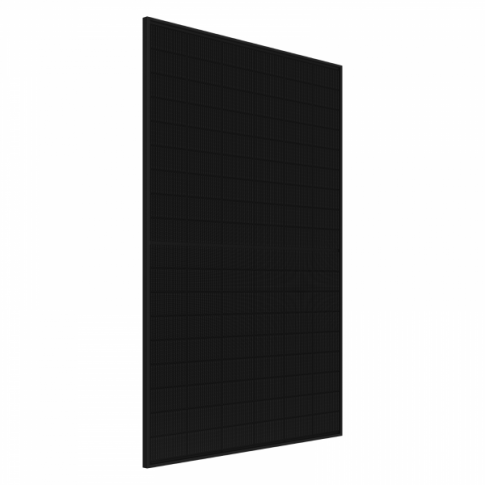

7 x 430W black rigid frame Sharp solar panels:

These high-quality 430W full black solar panels from Sharp, a global leader with over 60 years of experience and over 50 million panels installed, features advanced TOPCon solar cells for superior efficiency, better performance at high temperatures, and enhanced long-term stability. The half-cut cell design reduces internal losses, minimizes hotspot risks, and improves shaded condition performance, while the robust IP68-rated construction ensures durability against harsh environments like salt mist, ammonia, heavy snow, and sand. Backed by up to a 30-year power output guarantee and fitted with waterproof MC4 connectors for easy integration, this panel delivers exceptional reliability and longevity.

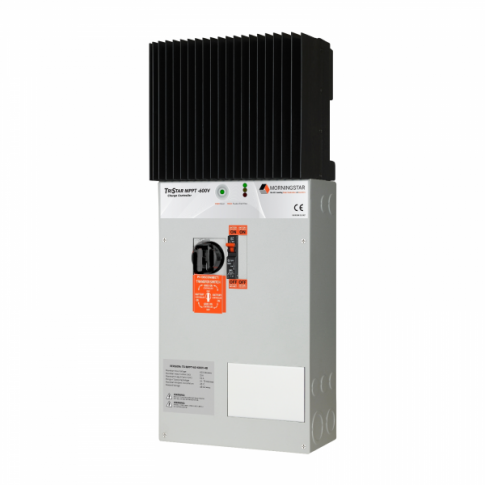

Morningstar TriStar™ 60A 48V MPPT solar charge controller:

Morningstar’s top-tier solar charge controllers are renowned for their innovative design and superior build quality, extending battery life, maximizing energy production, and delivering consistent high performance. Among them, the Morningstar TriStar™ 60A MPPT 600V charge controller stands out as an ideal choice for large off-grid solar systems or retrofitting existing grid-tie setups with battery backup. With TrakStar™ Technology, it provides unmatched automatic power point tracking, ensuring maximum energy harvest and a peak efficiency of 97.9% while minimizing power losses for exceptional returns on investment.

Designed for high voltage applications, this controller supports input voltages up to 600V, reducing voltage drop and wire costs. It can integrate with existing grid-tie systems to store excess energy in backup batteries without altering the PV array configuration, accommodating incremental solar panel additions seamlessly. Its DC transfer switch and enhanced wiring disconnect box enable a 60A continuous battery current to be directed to a battery bank or grid-tie inverter. With features like programmable battery voltage settings, comprehensive electronic protections, and compatibility with various battery types, this controller is a robust, efficient solution for demanding solar power systems.

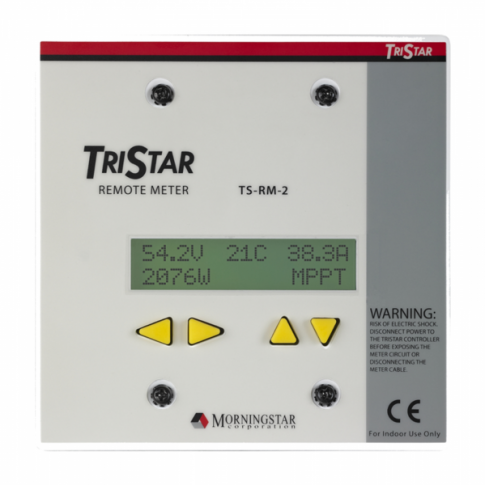

Morningstar TriStar remote LCD digital meter:

Morningstar's innovative solar charge controllers and accessories are designed with superior build quality, leveraging years of dedicated research to maximize energy production, extend battery life, and deliver consistent high performance. This remote meter comes with 30m of cable for effortless connection to the RJ-11 port on a TriStar™ controller. Key features include a highly reliable design with a 5-year warranty, an easy-to-navigate backlit LCD display, and multilingual support (English, French, German, Portuguese, and Spanish). The meter can display individual controller data or aggregate system data for up to 15 linked TriStar™ controllers (via the Morningstar MeterHub, sold separately), providing comprehensive insights into charging parameters like battery voltages, charge priority, and state of charge.

Additional items:

This kit also includes a pair of 10m single-core 6.0mm² solar cable20A fuse and a Kraus & Naimer manual solar DC isolator switch.

Click on the Details and Specifications tab for more information.

Solar panel specifications:

• Peak power: 430W
• Maximum power voltage: 32.73V
• Maximum power current: 13.14A
• Open circuit voltage: 39.09V
• Short circuit current: 14.01A
• Power tolerance: 0/+5%
• Dimensions: 1722 x 1134 x 30 mm
• Weight: 20.7 kg
• 2 x 1.25m of high-quality single core solar cable
• Male and female MC4 waterproof connectors

Controller specifications:

• Nominal system voltage: 48V
• Maximum output current: 60A
• Solar input voltage up to 600V
• 3 pairs of terminals (input, battery, output), plus ports for computer connectivity and the remote meter
• Multi-colour LEDs to indicate charging and battery status
• Temperature sensor for automatic compensation (-5mV/C/cell) operating between -30°C and +80°C
• Battery operating voltage range: 16 - 72V
• Self-consumption: < 3.5W
• Working temperature: -40°C to +45°C
• Humidity: 100% non-condensing
• Enclosure: IP20 (indoor and vented)
• Size: 544 x 221 x 150 mm
• Weight: 12.75 kg

Please note: due to our warehouse arrangements, the solar charge controller and accessories may be shipped from a different warehouse to the solar panel and therefore delivered in a separate package.

The solar charge controller and remote digital meter are covered by a 5 year warranty. For more information please refer to our Terms and Conditions.

The solar panel is covered by up to a 25-year product guarantee provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least 99% of nominal power in the first year after purchase and less than 0.4% degradation of nominal power each year after until 30 years after purchase, for a minimum of 87.5%.

The solar panel comes with a detailed instruction manual which explains wiring and operations (see Documents tab). The solar charge controller also comes with a separate instruction manual which explains settings and operation.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

Datasheet for Sharp NU-JC430B 430W monocrystalline solar panel (SRP-430B)

Installation Guide for Sharp NU-JC430B 430W monocrystalline solar panel (SRP-430B)

Data sheet for TS-MPPT-60-600V-48-DB-TR Morningstar TriStar 60A MPPT 600VDC charge controller with DC transfer switch

Instruction manual for TS-MPPT-60-600V-48-DB-TR Morningstar TriStar 60A MPPT 600VDC charge controller with DC transfer switch

Data sheet for TS-RM-2 Morningstar TriStar LCD remote meter

Instruction manual for TS-RM-2 Morningstar TriStar LCD remote meter

User manual for Kraus & Naimer DC isolator switch (KG20)
