Product code:
MT-KIT1
Ex. VAT £5061.34
Inc. VAT £6073.61
Was:
£11793.50
Availability:
Less than 10 in stock
Сheck delivery cost
Add to shopping cart



This 4kW 48V Complete Solar Power System is the perfect ready-to-use kit for off-grid applications requiring a reliable and constant source of power for household appliances or industrial equipment in areas without access to or without stable mains electricity. This kit can provide power to small, medium and large household or office appliances such as a fridge, TV, radio, lights, computer, hoover, microwave, kettle, power tools, a washing machine or even a small air-conditioning unit. This may vary significantly according to the location and season.

This complete off-grid kit has been expertly designed to maximise efficiency and output and therefore comes equipped with some of our most premium quality products; including nine powerful 440W Sharp solar panels, a 24kW 48V 500Ah battery bank, a state-of-the-art 8kW TBB Power Tyrann inverter charger, and three Morningstar 30A TriStar™ MPPT charge controllers, a meter hub, a ethernet meterbus, a remote meter and a relay driver.

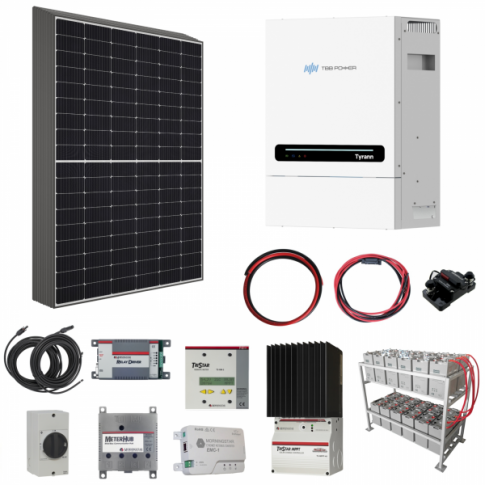

Kit includes:

  • 9 x 440W Sharp Black Frame Monocrystalline Solar panel
  • 8kW 48V TBB Power Tyrann inverter charger
  • 3 x 30A Morningstar TriStar™ MPPT charge controllers
  • Morningstar HUB-1 MeterHub
  • Morningstar EMC-1 Ethernet Meterbus
  • Morningstar TS-RM-2 Remote LCD digital meter
  • Morningstar RD-1 Relay Driver
  • 24kWh 48V 500Ah battery bank - comprised of 24 x 2V AGM batteries
  • Automatic circuit breaker
  • 3 x Kraus & Naimer manual solar DC isolator switch
  • 3 x Pair of 10m 6mm² solar extension cables
  • 3 x 3m 10mm² red and black battery cable with a 60A fuse
  • 1m of red and black 70mm² heavy duty battery cable

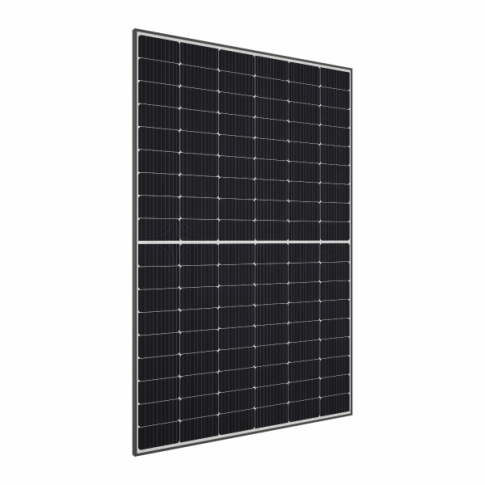

9 x 440W Sharp black frame monocrystalline solar panel:

This high-quality 440W black frame solar panel from Sharp, a global leader with over 60 years of solar expertise, offers reliable and efficient energy solutions. Its advanced TOPCon solar cells provide superior efficiency, better performance in high temperatures, and long-term durability, while half-cut cell construction minimizes internal losses and enhances shaded condition performance. Designed for diverse applications, including grid-tie and off-grid systems, it features an IP68-rated waterproof build, ensuring resilience in harsh environments and simple integration with MC4-compatible connectors.

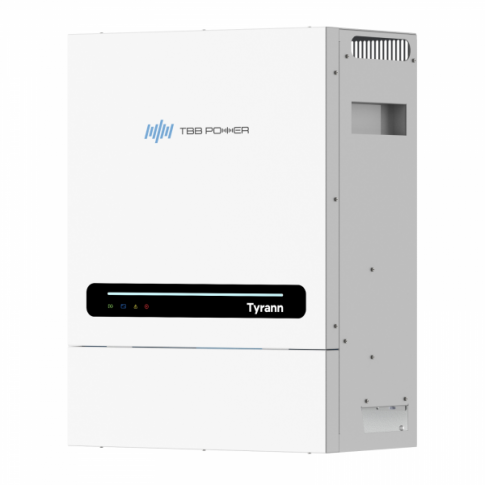

8kW 48V TBB Power Tyrann inverter charger:

The TBB Tyrann is a robust, transformer-based inverter charger designed for backup, off-grid, and energy storage applications. This model features a programmable smart port, allowing it to function as either a generator input or secondary AC output to enhance load flexibility. This inverter is ideal for stationary and mobile setups, such as off-grid homes, cabins, or remote properties. The Tyrann supports peak shaving, time-of-use optimization, and grid feed-in for utility credits. With an ultra-fast 0ms transfer to battery power, it ensures seamless operation during outages, making it perfect for installations requiring energy independence and reliability.

Key Features:

1. Ultra-fast 0ms transfer to battery power: The Tyrann’s instant transfer speed guarantees uninterrupted power, seamlessly switching to battery power in zero milliseconds to keep connected devices running smoothly without any delay.

2. High-surge pure sine wave inverter: Delivers stable 230V AC output with high surge capacity, providing the pure sine wave quality required for sensitive electronics and high-demand appliances.

3. Enhanced flexibility: The Tyrann can be configured in parallel with up to 3 units in singles phase applications, or up to 9 units in three-phase applications, achieving a maximum output of 72kVA. It features a built-in smart port for generator input or a second AC output, which enhances system versatility.

4. ESS and grid-tie capabilities: The Tyrann inverter seamlessly integrates with the E4 LCD Monitor and IC-METER, unlocking advanced Energy Storage System (ESS) and grid-tie functionalities. This allows for real-time monitoring, efficient energy management, and smooth interaction with the grid, ensuring a versatile and future-ready power solution.

5. 50A transfer switch: The AC transfer switch inside the Tyrann is rated up to 50A, allowing for up to 11.5kW of power to be passed through to the loads from the AC input when the inverter is in bypass.

For users prioritizing reliability and ultra-fast power transfer, the Tyrann inverter offers a rugged, adaptable power solution for critical applications and off-grid energy systems.

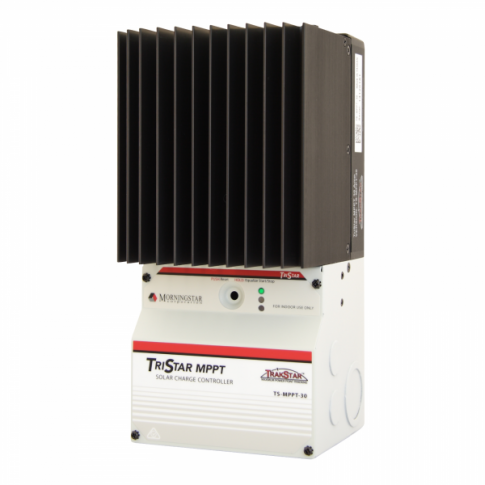

30A Morningstar TriStar™ MPPT solar charge controller:

The high-quality Morningstar TriStar™ MPPT 30A solar charge controller supports 12V to 48V battery banks and features TrakStar™ Technology, delivering industry-leading maximum power point tracking for optimal energy harvest. With a record-setting 99% peak efficiency, it minimizes power losses and maximizes return on investment while providing robust battery protection, including automatic cut-off to prevent overcharging and deep discharge. Designed for durability and ease of use, it offers extensive protections, advanced communication capabilities for remote monitoring, and a fanless thermal design for reliable performance in high temperatures.

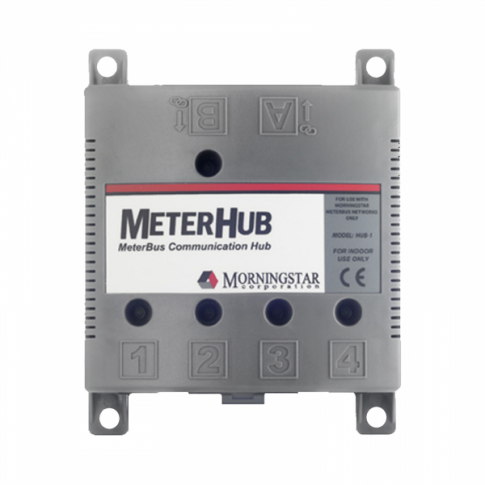

Morningstar HUB-1 meterHub:

The high-quality Morningstar MeterHub connects up to four Morningstar controllers, enabling seamless communication in systems with multiple solar charge controllers on the same battery bank. Additionally, the MeterHub electrically isolates each controller, protecting the network from potential damage caused by grounding issues.

Morningstar EMC-1 ethernet meterbus:

The Morningstar EMC-1 Ethernet MeterBus Converter enables remote access and monitoring of a Morningstar solar charge controller via an Ethernet connection, converting a MeterBus (RJ-11) or RS-232 port into a web-compatible RJ-45 port. The meterbus supports real-time monitoring and remote adjustments through the Morningstar LiveView interface, accessible from any device on the same network or globally via the internet. Designed for convenience, it includes auto-detection of compatible devices, operates in a wide voltage and temperature range, and comes with essential cables and mounting hardware for easy installation.

Morningstar TriStar™ remote LCD digital meter:

Morningstar's innovative solar charge controllers and accessories are designed with superior build quality, leveraging years of dedicated research to maximize energy production, extend battery life, and deliver consistent high performance. This remote meter comes with 30m of cable for effortless connection to the RJ-11 port on a TriStar™ controller. Key features include a highly reliable design with a 5-year warranty, an easy-to-navigate backlit LCD display, and multilingual support (English, French, German, Portuguese, and Spanish). The meter can display individual controller data or aggregate system data for up to 15 linked TriStar™ controllers (via the Morningstar MeterHub, sold separately), providing comprehensive insights into charging parameters like battery voltages, charge priority, and state of charge.

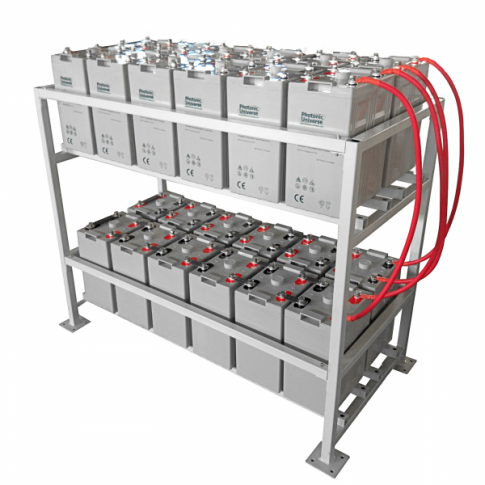

24kWh 48V 500Ah AGM battery bank:

The advanced 48V 500Ah battery bank included in this kit is comprised of 24 x 2V high quality AGM batteries, complete with metal plate connectors for instant connection. This battery bank features 2V batteries, offering important advantages over battery banks made up of 12V batteries including a longer service life and deeper discharge capability.

Additional items:

This kit also includes a Morningstar remote meter and relay driver, 3 x 3m red and black 10mm² battery cable with 60A fuse for connecting the MPPT controller to the battery bank, an automatic circuit breaker for use between the inverter and the battery bank, 3 x DC isolator switches for use between MPPT controller and solar panels, 10m 6mm² solar extension cable and T-MC4 connectors to connect to the existing solar cable fitted to the solar panels, and 1m of red and black 70mm² heavy duty battery cables for connection of the battery bank to inverter.

Click on the Details and Specifications tab for more information about this kit.



Solar panel specifications (per solar panel):

  • Peak power: 410W
  • Maximum power voltage: 31.3V
  • Maximum power current: 13.1A
  • Open circuit voltage: 37.79V
  • Short circuit current: 13.81A
  • Power tolerance: 0/+5%
  • Dimensions: 1722 x 1134 x 30 mm
  • Weight: 21.8 kg
  • Mounting holes for ease of installation
  • 2 x 1.25m of high-quality single core solar cable
  • Male and female MC4 waterproof connectors



Inverter specifications:

  • Nominal battery voltage: 48V
  • Continuous power output: 8000VA (220-240V AC)
  • Maximum output power: 8000W
  • Peak power: 24000W
  • AC Output frequency: 50/60Hz
  • Output waveform: Pure sine wave
  • Maximum AC charging current: 110A
  • AC transfer current: 50A
  • Peak efficiency: 96%
  • Zero load power: 26W
  • Transfer time: 0ms
  • Protection index: IP21
  • Operating temperature: -40°C to 65°C
  • Humidity: 95% without condensation
  • Altitude: <2000m
  • Size: 620 x 320 x 164 mm
  • Weight: 36 kg



Morningstar MPPT controller specifications:

  • Nominal battery voltage: 12V / 24V / 36V / 48V
  • Maximum output current: 30A
  • Solar input voltage up to 150V
  • 3 pairs of terminals (input, battery, output), plus ports for computer connectivity and an optional remote meter
  • Multi-colour LEDs to indicate charging and battery status
  • Temperature sensor for automatic compensation (-5mV/C/cell) operating between -30°C and +80°C
  • Minimum voltage to operate: 8V
  • Self-consumption: < 2.7W
  • Working temperature: -40°C to +45°C
  • Humidity: 100% non-condensing
  • Enclosure: IP20 (indoor and vented)
  • Size: 291 x 130 x 142 mm
  • Weight: 4.14 kg



Battery bank specifications (per 2V battery):

  • Nominal voltage: 2V
  • Nominal capacity: 500Ah (10h rate) / 508Ah (20h rate)
  • Maximum charging current: 100A
  • Cycle lifetime at 30% D.O.D.: 1200
  • Pressure control: safety valve installed
  • Terminal type: M10 bolts
  • Operating temperature: from -10C to +40C
  • Size: 242 x 174 x 365 mm
  • Weight: 27 kg



(entire 24V battery bank):

  • Nominal voltage: 48V
  • Nominal capacity: 24kWh
  • Maximum charging current: 100A
  • Charging voltage: cycle use 56.4V, standby use 54.8V
  • Temperature compensation: cycle use -120mV/°C, standby use -72mV/°C
  • Size: 1290 x 1140 x 670 mm (when positioned in racking)
  • Weight: 720 kg (including racking)



Please note: due to our warehouse arrangements, the kit accessories may be shipped from a different warehouse to the solar panels, hybrid inverter, and battery bank, and therefore delivered in a separate package.

The batteries are covered by a 1 year warranty provided by Photonic Universe. In the unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). The Morningstar products and TBB Power inverter are covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

The panels are covered by up to a 25-year product guarantee provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least 98% of nominal power in the first year after purchase and less than 0.54% degradation of nominal power each year after until 25 years after purchase, for a minimim of 85%.

For installation advice, please click on the Installation tab.



We can offer a detailed wiring diagram and full technical support for installations and settings upon request. Additionally, an optional mounting system is available separately at extra cost, suitable for various types of roofs and mounting surfaces.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
