Product code:
TBB-ELINK
Ex. VAT £91.66
Inc. VAT £109.99
Availability:
In stock
Add to shopping cart

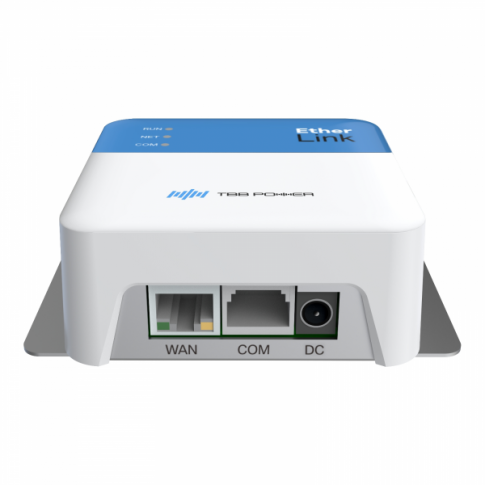

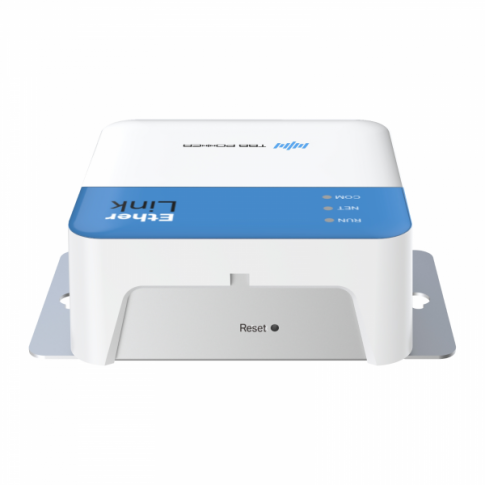

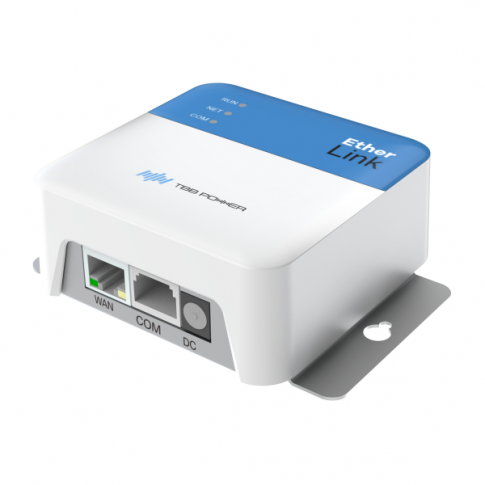

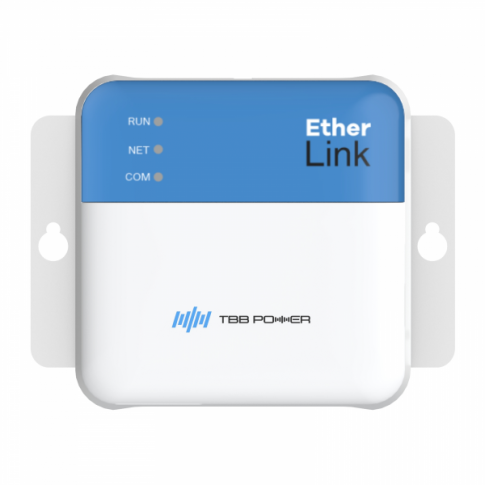

The TBB-ELINK module provides reliable, real-time data transmission and access to historical records for TBB systems. Built for seamless remote monitoring and control, ELINK connects through a wired Ethernet connection to the TBB NOVA Web and App for accessible system oversight.

Key Features:

  • Remote Monitoring and Control: Easily access real-time data and manage TBB systems remotely via the TBB NOVA Web and App, enhancing the user experience.
  • SNMP Protocol Support: Advanced monitoring capabilities enable localized and customized management, as well as privacy protection and cost-effectiveness within a LAN.
  • Robust Ethernet Connectivity: Equipped with a 10/100Mbps Ethernet interface supporting IEEE 802.3 flow control for full duplex and CSMA/CD protocol for half duplex operation, ensuring stable connectivity with routers.
  • Dedicated TBB Interface: Seamlessly integrates with TBB products through a standard TBB communication interface.



Reliable Performance:

Powered by an ARM Cortex M4 core with a bus frequency of up to 144MHz, TBB-ELINK is built to withstand industrial-grade temperature ranges, delivering consistent and secure communication.

Connect the TBB-ELINK module to your TBB system for enhanced data visibility, control, and secure integration into custom monitoring platforms.



For detailed specifications and compatibility information, refer to the Details and Specifications tab.





TBB ELINK communication module specifications:

  • Operating voltage range: 9-16V
  • Operating current range: 5-250mA
  • Power supply: 12V 500mA (stable DC power source)
  • Bandwidth: 10/100Mbps
  • Communication port: RJ45
  • Protection: IP20
  • Operating temperature range: -30°C to +75°C
  • Operating altitude: <5000m
  • Relative humidity: 10-85%
  • Dimensions: 108.6 x 84.92 x 40.3 mm
  • Net weight: 200g



This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.



This product comes with a detailed user manual which explains wiring and operations (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
