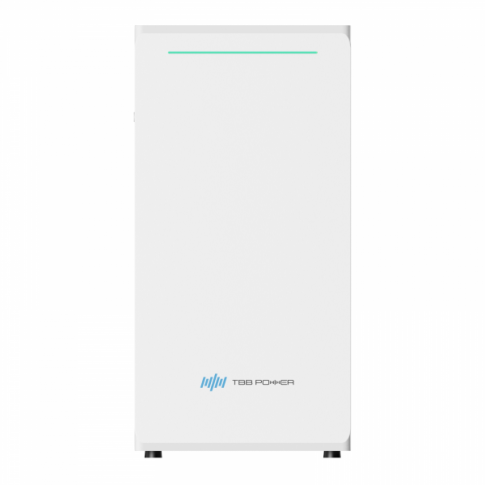

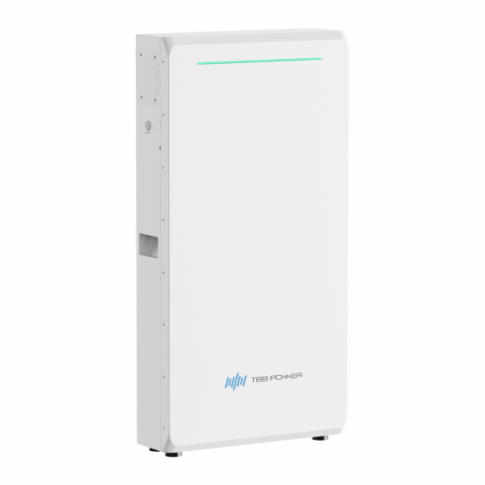

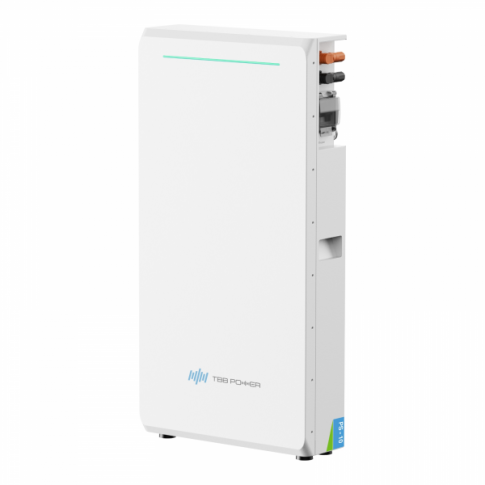

What is the PS10?

The PS10 or Power Stack 10 is TBB Power's latest 48V lithium battery packs, designed to deliver high energy density and exceptional performance for residential and commercial applications. With a compact design and long cycle life, this battery pack offers an ideal solution for your energy storage needs.

Key features:

• High capacity and power output: Engineered to provide large capacity and high-power output, making them suitable for a variety of energy-intensive applications.
• Safe and reliable: Utilises lithium iron phosphate (LiFePO4) cells known for their safety and high energy density, ensuring reliable performance over time.
• Modular design: The PS10 supports up to 16 units in parallel, allowing for flexible capacity expansion to meet diverse energy demands.
• Space-saving installation: Supports both floor-mounted and wall-mounted installations, optimizing your available space and enhancing convenience.
• Cost-effective integration: High integration design reduces installation costs and simplifies wiring processes for easier setup.
• User-friendly features: Each battery pack comes with a mounting bracket for easy installation and handles on both sides for convenient transportation.
• Built-in safety mechanisms: Equipped with a built-in circuit breaker for over-current protection, ensuring safe operation.
• IP65 protection rating: Suitable for both indoor and outdoor use, providing durability and reliability in various environments.
• Compatibility: Features perfect compatibility with mainstream inverters, supporting CAN and RS485 communication for seamless integration.
• Real-time monitoring: Monitor battery status remotely through the NOVA APP & Web and locally via the optional TBB-E4 LCD Monitor (sold separately) and , ensuring you stay informed about your energy usage.

Applications:

The Power Stack 10 is ideal for a range of residential and commercial applications. It's advanced features make it perfect for energy storage systems that require high capacity and flexibility, including solar power systems, backup power solutions, and off-grid setups.

This battery pack is designed to provide long-lasting performance, with a focus on safety, efficiency, and user convenience.

This battery pack comes securely packaged with a user manual and installation accessories.

Click on the Details and Specifications tab for more information.

Specifications:

• Nominal voltage: 48V
• Work voltage range: 42 – 54.75V
• Nominal capacity: 210Ah
• Maximum power: 10.08kW
• Peak current: 240A
• Maximum charge and discharge current: 105A
• Recommended charge and discharge current: 52.5A
• Self-discharging rate: <3% per month
• Cycle life: 6000 (90% DoD, 70% SoH), @25°C, 0.5C
• Operating discharge temperature: from -20°C to +55°C
• Operating charge temperature: from 0°C to +55°C
• Altitude: <2000m
• Humidity: 95% (without condensation)
• Protection: IP65
• Size: 484 x 968 x 195 mm
• Weight: 94.0 kg

This product is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.

User manual for the 48V 210Ah 10.08kW IP65 Floor/Wall mounted TBB Power Lithium Battery (PS10)

Datasheet for the 48V 210Ah 10.08kW IP65 Floor/Wall mounted TBB Power Lithium Battery (PS10)
