What is the ES100 II lithium battery module?

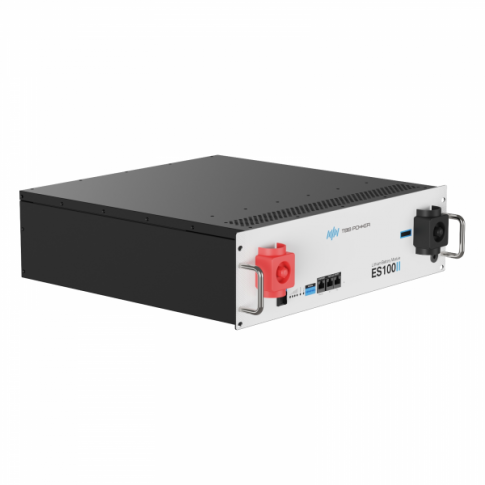

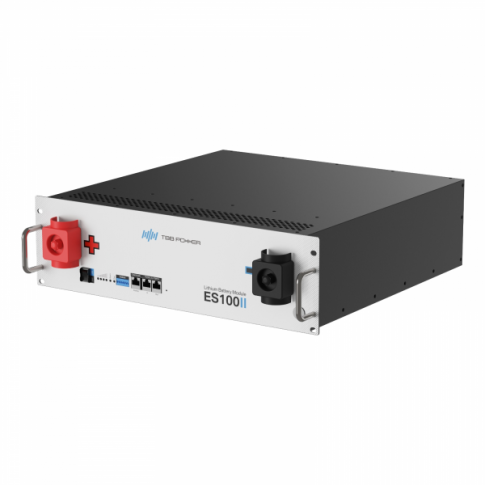

The ES100 II is a state-of-the-art 48V 105Ah lithium battery module from TBB Renewable, designed for backup power systems, solar off-grid applications, and residential energy storage. This module features a high energy density and a sleek, compact design, ensuring safe and efficient energy storage with a long cycling life. With its advanced technology, the ES100 II simplifies installation and enhances overall system performance.

Key features:

• Safe and reliable: Utilises lithium iron phosphate (LiFePO4) cells, providing superior safety and longevity compared to traditional battery technologies.
• Scalable capacity: Supports the connection of up to 32 modules in parallel, allowing for customizable energy solutions to meet varying demands.
• Easy installation: Automatically assigns communication addresses to slave modules, making the parallel connection process straightforward and efficient.
• High performance: Capable of short-time high-current charge and discharge with an impressive 90% depth of discharge (DoD) and a lifespan of up to 6,000 cycles.
• Versatile compatibility: Features external CAN communication and an RS485 communication port for seamless integration with leading inverter brands, including TBB inverters.

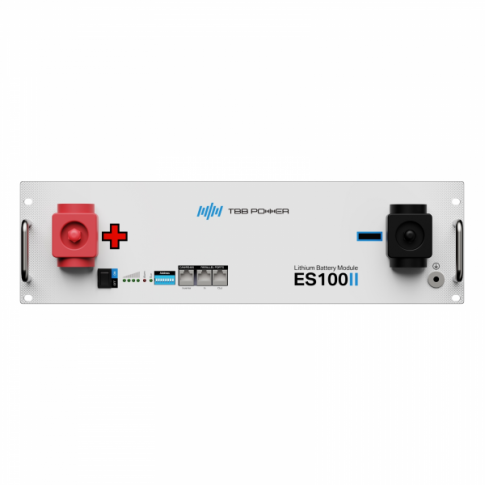

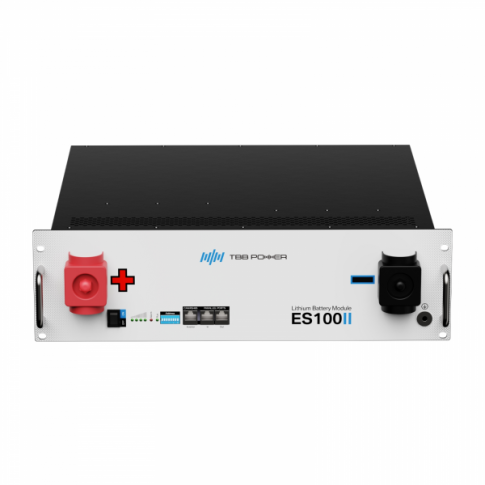

• User-friendly design: Equipped with universal positive and negative terminals for hassle-free installation and comes standard with a 300A parallel bus bar.
• Durable protection: The modules are IP20 protected as standard and can be easily fitted to a mounting bracket or rack cabinet (both sold separately). The cabinet meets IP65 protection standards, ensuring reliability in various environments.
• Intelligent management system: Each battery pack includes an advanced Battery Management System (BMS) for effective monitoring and management of modules.
• Convenient handling: Designed with practical pull bars for enhanced ease of operation.

Applications:

The ES100 II is ideal for backup power systems, solar energy storage, and off-grid applications. Its advanced features make it an excellent choice for residential energy solutions, emergency power storage, and integration with renewable energy sources.

The expected service life of the ES100 II is over 6,000 cycles, ensuring long-lasting performance for your energy needs.

The battery module comes packaged securely with a user manual and necessary installation hardware.

Click on the Details and Specifications tab for more information.

Battery specifications:

• Nominal voltage: 48V
• Work voltage range: 42 – 54.75V
• Nominal capacity: 105Ah
• Peak current: 120A
• Maximum charge and discharge current: 105A
• Recommened charge and discharge current: 52.5A
• Self-discharging rate: <3% per month
• Cycle life: 6000 (90% DoD, 70% SoH), @25°C, 0.5C
• Operating discharge temperature: from -20°C to +55°C
• Operating charge temperature: from 0°C to +55°C
• Altitude: <2000m
• Humidity: 95% (without condensation)
• Protection: IP20
• Size: 482.6 x 133.4 x 450 mm
• Weight: 40.0 kg

This product is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.

User manual for the 48V 105Ah TBB Power Rack Mounted Lithium Battery (ES100II)

Datasheet for the 48V 105Ah TBB Power Rack Mounted Lithium Battery (ES100II)
