DC to DC Battery Chargers

25A 12V DC to 24V DC Advanced Automatic Multi-Stage Battery-to-Battery Charger for Lead Acid and Lithium Batteries

25A 12V DC to 24V DC Advanced Automatic Multi-Stage Battery-to-Battery Charger for Lead Acid and Lithium Batteries
25A 12V DC to 24V DC Advanced Automatic Multi-Stage Battery-to-Battery Charger for Lead Acid and Lithium Batteries
25A 12V DC to 24V DC Advanced Automatic Multi-Stage Battery-to-Battery Charger for Lead Acid and Lithium Batteries

Phone order?

Call our number
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm
Product code:
DC1224-25
Ex. VAT £249.99
Inc. VAT £299.99
Availability:
In stock
Add to shopping cart

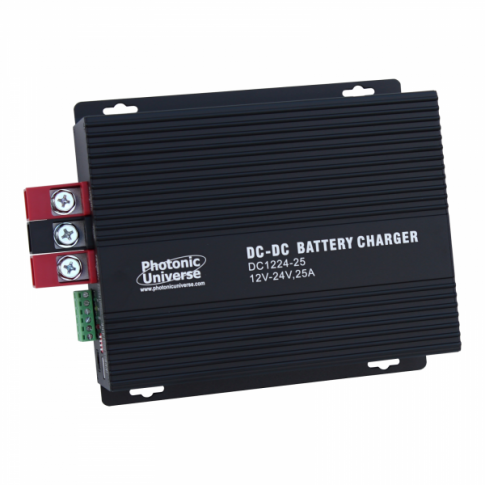

This Photonic Universe 25A advanced DC-DC Battery Charger is fully automatic and ideal for leisure vehicles, commercial and special purpose vehicles, boats, and any other systems with a need to charge 24V batteries from 12V batteries or power sources. The charger operates using an adjustable three-stage charging programme and is suitable for Lead Acid, AGM, Gel, LiFePO4, and Lithium-ion (NCM) batteries. The product is compact, lightweight and features high frequency switching and buck-boost power conversion technology for reliable, consistent performance.

Key Features:

  • Fully-automatic, high-frequency, multi-stage charging: ensures the battery is charged safely and quickly. Pulsed charging keeps temperatures low and helps ensure a long battery life.

  • Easy battery type selection: with the use of dip switches, the unit can be switched between Lead Acid, AGM, Gel, LiFePO4, or Lithium-ion battery types.

  • Safe unattended charging: the unit features inbuilt safety functions (protection against overload, overheating, overvoltage, over-discharge, short circuit, and reverse discharge of the battery), that allow the charger to be left permanently connected to the batteries for unattended automatic charging.

  • Advanced temperature protection and compensation: when paired with an optional external temperature sensor (sold separately), the charger provides advanced temperature protection for the batteries. For Lead Acid batteries, the charger adjusts the charging voltage to compensate for ambient temperature, ensuring optimal charging and extending battery life. For Lithium batteries, the temperature sensor unlocks a charging protection to be selected to prevent charging when below 0°C which could damage the battery.

  • Data monitoring: the charger includes ports for a remote meter or a Bluetooth module (both sold separately), allowing data to be viewed on an LCD display or through a mobile phone app when connected.

  • Continued charging during battery/load use: the charger will continue to operate at full power whilst energy is drawn from the battery during use. Any 12V loads may also be left permanently connected and running whilst the DC-to-DC charger is in operation, and will be protected against overvoltage and voltage fluctuations.

  • Ignition on/off control: via connection to the ignition control through the D+ terminal, this charger can be set to begin battery-to-battery charging immediately when vehicle ignition is turned on, and stop charging when the vehicle is turned off.

  • Wake-up function for Lithium batteries: when the Battery Management System (BMS) of a lithium battery goes into the protection mode, the charger can automatically activate the BMS and continue charging the lithium battery.

Additional features:

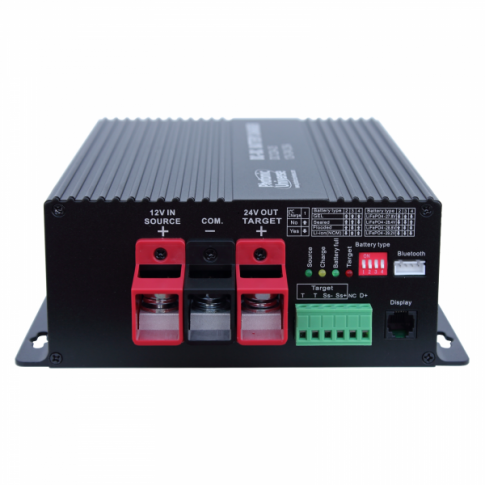

This charger features optional terminals that enable greater precision in voltage measurement of the target battery by bypassing the voltage drops in heavy-duty charging cables.

The charger includes 4 LED indicators to display the battery charging stage and diagnostic information.

Compatibility:

This DC-to-DC battery charger is suitable for use with 12V source battery and a 24V lead acid, AGM, Gel, LiFePO4, and Lithium-ion (NCM) batteriy or battery bank. It is not compatible with 48V batteries or a source battery that is not a 12V configuration.

Click on the 'Details and Specifications' tab for more information about this product.





Specifications:

  • Source battery voltage: 12V
  • Battery input voltage: 10.5V - 16V
  • Effective D+ signal voltage range: 8V - 16V
  • Maximum charging power: 650W
  • Maximum charging current of target battery: 25A
  • Minimum recommended source battery capacity: 60Ah
  • Target rated voltage: 24V (Lead acid, AGM, GEL), 25.6V (LiFePO4), 22.2V (Li-ion)
  • Target battery capacity: 45Ah - 280Ah
  • Target battery operating voltage range: 16V - 32V
  • Bulk charge voltage: 29.4V (AGM), 28.6V (GEL) 28.8V (Lead Acid), 27.8-29.2V (LiFePO4), 25.2V (Li-ion)
  • Float charge voltage: 27.0V (AGM), 27.6V (GEL) 27.0V (Lead Acid), 27.6V (LiFePO4), 25.0V (Li-ion)
  • Temperature compensation: -3mV/°C/2V
  • Operating temperature: -20°C to 50°C
  • Self-consumption current: 12mA
  • Weight: 1.60kg
  • Dimensions: 190 x 215 x 70mm



This product is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.





Full details explaining wiring and operations can be found in the user manual supplied with this product (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).



The following documents are available to download:

User manual for 25A 12V to 24V battery charger (DC1224-25)
