Bus bars
Victron Energy Lynx Power In DC busbar 1000A 12V/24V/48V
Phone order?
0203 150 1111
and quote the product code below
Photonic Universe is an official distributor of products from Victron Energy - the globally renowned manufacturer of high quality hybrid power charging solutions. Victron Energy products and accessories have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

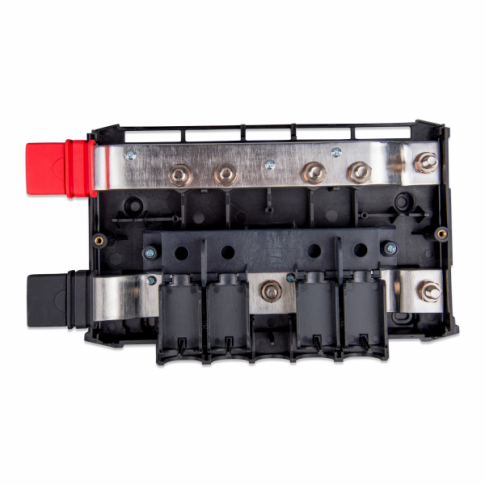

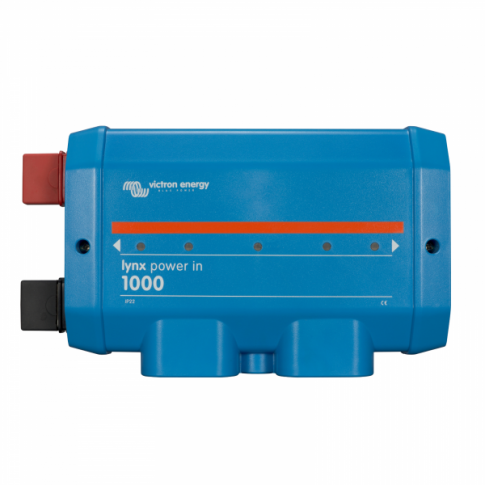

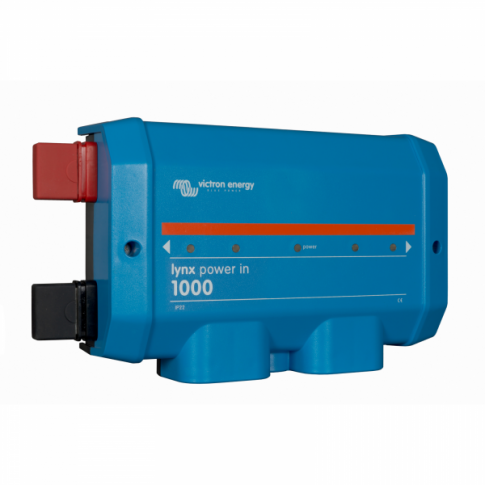

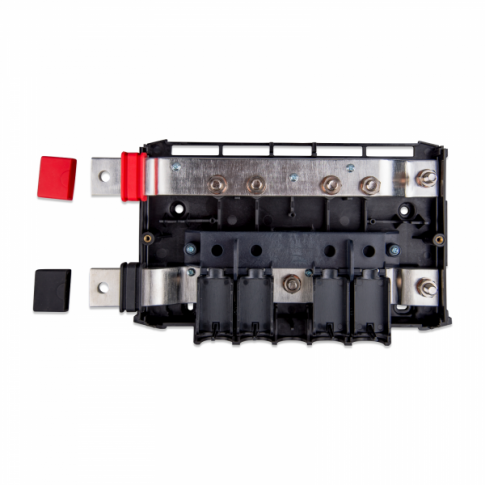

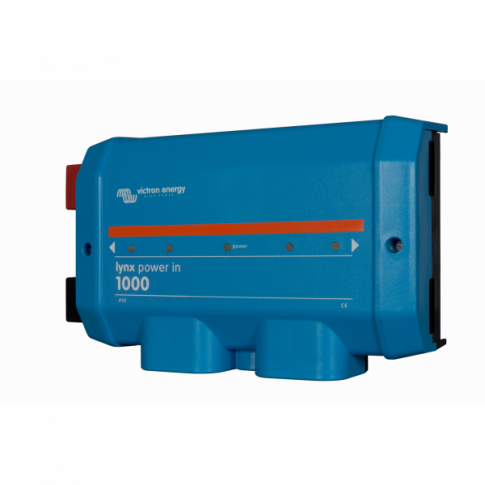

This Victron Energy Lynx Power In, part of the Lynx distribution system, is a modular DC busbar unit made up of a positive and a negative busbar with a nominal current rating of 1000A, featuring 4 connections for batteries, loads or chargers and a ground connection.
Unlike the Lynx Distributor, Lynx Power In does not have built-in, designated spaces for fuses. All connected loads, chargers or batteries would need to be fused using an external fuse system with an appropriate fault current interruption rating.
Depending on the desired outcome, multiple Lynx Power In modules can be connected together in series to create a longer busbar with more connections for batteries and/or loads. Alternatively, a single Lynx Power In unit can be used by itself or in combination with other Lynx distribution system modules (not included) such as:
Click on the Details and Specifications tab for more information.
Technical Specifications:
- Voltage range: 9 - 60Vdc
- Supported system voltages: 12, 24 or 48V
- Current rating: 1000A
- Busbar connection: M8
- Enclosure dimensions: 290 x 170 x 80 mm
- Unit weight: 2.1 kg
- Busbar material: Tinned copper
- Operating / storage temperature: -40°C to +60°C
- Humidity: Max. 95% (non-condensing)
- Protection class: IP22
This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see our Contact Us page for more information).
The following documents are available to download:
User manual for Victron Lynx Power In (VLYNX-PI)
Dimension drawing for Victron Lynx Power In (VLYNX-PI)
