Grid-tie inverters

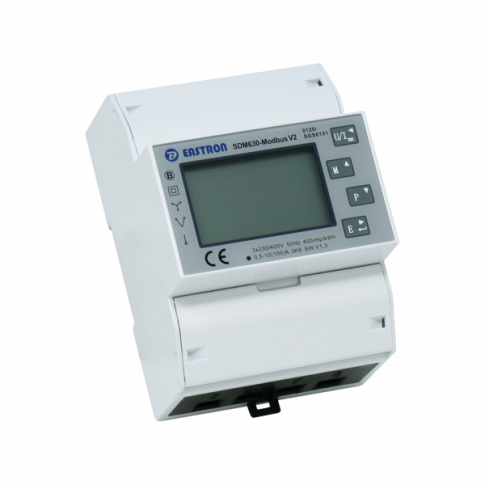

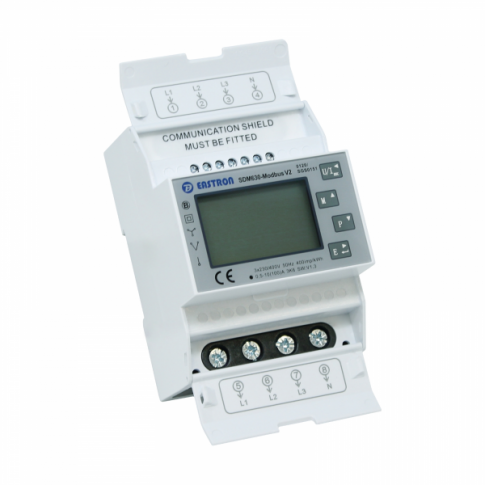

100A Eastron SDM630-Modbus V2 energy meter for self-consumption applications of Iconica grid-tie hybrid inverters
Phone order?
0203 150 1111
and quote the product code below
The SDM630-Modbus V2 energy meter measures and displays the characteristics of single phase two wires (1p2w), three phase three wires (3p3w) and three phase four wires (3p4w) supplies. It features a highly visible LCD and a user-friendly navigation menu to display the measured voltage, frequency, current, power and imported/exported/total energy. The energy is measured in terms of kWh and kVArh.
This energy meter is typically used in conjunction with the RS-485 Modbus card to easily integrate an Iconica grid-tie inverter into an existing household power system and to efficiently set up the self-consumption function to control power generation and battery charging of the inverter.
It supports a maximum direct connection of 100A, which means that you do not need to connect an external current transformer for this energy meter to operate. This makes it cost effective and less complex to use than other energy meters.
The built-in interfaces provide two pulse outputs, one of which is configurable, indicating the real-time energy measurement, and an RS-485 Modbus output for communication using the Modbus RTU protocol.
For more details, please check the user manual under the Documents tab.
Specifications:
- Dimensions: 72 x 100 x 66 mm
- Weight: 0.32 kg
- Operating temperature: -25°C to +55°C
- Communication/Pulse wiring terminal: 0.5 - 1.5 mm2
- Load wiring terminal: 4 - 25 mm2
- Relative humidity: 0 to 90% (non-condensing)
- Altitude: up to 2000m
This product is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.
This product comes with a detailed user manual which explains wiring and operations (see Documents tab).
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
The following document is available to download:
User manual for SDM630-Modbus V2 smart energy meter (IC-METER)
