This Photonic Universe Uninterrupted Power Supply (UPS) system is suitable for both mains-powered and off-grid applications where a stable and reliable source of AC power is required. Ideal for running household appliances, IT and computer rooms, servers, commercial or other large electronic equipment.

In a mains-powered setup, the system ensures that the AC appliances are not interrupted even if the mains electricity is unstable, intermittent or the power is suddenly cut off. While the mains power is available, the system links it to the AC output to power connected appliances whilst simultaneously charging the batteries, or keeping them topped up. If the mains power is suddenly cut off, the system instantly transfers the power input to the batteries and starts drawing energy from them so that the load work is not interrupted. When the mains AC input power becomes available again, the system transfers the input to mains AC power.

For off-grid systems with a generator, this UPS system can allow for continual power even when the generator is turned off. This allows users to achieve significant savings of fuel costs by only running the generator periodically - at the optimal power levels to charge the batteries.

The system can also be used for portable power applications, i.e. when the batteries are charged in a location with mains electricity, and the system is then transported to a different off-grid location to provide power on demand on a temporary basis.

This UPS system also supports solar power input with no additional charge control equipment required. Users can simply connect a suitable solar array to the inverter to start charging from solar power to save on electricity bills for mains connected systems, or in order to run a generator less frequently for off-grid systems.

The external battery bank allows for easy expansion or replacement, as well as straight-forward installation in irregular locations.

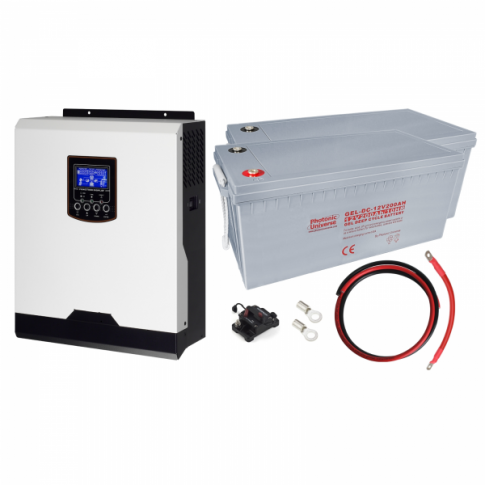

This package includes the main UPS unit, 2 x 200Ah gel deep-cycle batteries, 1m tinned copper battery cables, a battery linking cable, a thermal over-current circuit breaker and loose ring terminals for crimping.

Please note: the inverter uses predictive cooling logic to activate the fans, and is not suitable for installing in locations where silence is required.

Click on the Details and Specifications tab for more information about this kit.

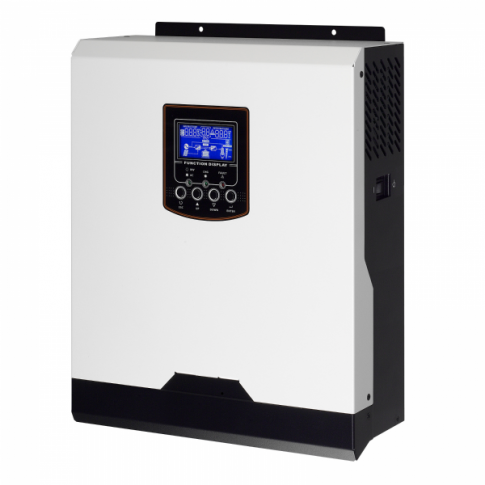

UPS specifications:

• Nominal battery voltage: 24V
• Continuous power output: 3000W / 3000VA
• Surge power: 6000VA
• Output voltage: 230V AC
• Output frequency: 50Hz /60 Hz
• Output waveform: Pure sine wave
• Maximum solar input power: 1200W
• Maximum open circuit solar input voltage: 80V
• Maximum solar charging current: 50A
• Maximum mains AC charging current: 25A
• Maximum combined charging current: 70A
• Peak efficiency: 93%
• Operating temperature: -10C to 50C
• Supplied with a PC connection cable and PC software CD
• Terminals for mains power connection
• Size: 33.4 x 28.5 x 10 cm
• Weight: 6.3 kg

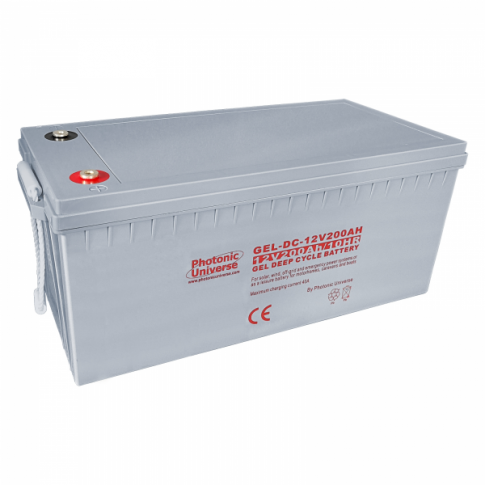

Battery specifications (per battery):

• Nominal voltage: 12V
• Nominal capacity: 200Ah (10h rate) / 205Ah (20h rate)
• Maximum charging current: 40A
• Self-discharging rate: <1% per month
• Cycle lifetime at 30% D.O.D.: 1200-1300
• Pressure control: safety valve installed
• Terminal type: F24 (bolts and washers included)
• Operating temperature: from -10C to +50C
• Size: 523 x 239 x 243 mm
• Weight: 61.5 kg

Please note: due to our warehouse arrangements, the accessories may be shipped from a different warehouse to the hybrid inverter and batteries, and therefore delivered in a separate package.

The batteries are covered by a 1 year repair or replacement warranty provided by Photonic Universe. In the unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). The hybrid inverter is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.

For installation advice, please click on the Installation tab.

If you are unsure as to whether 3000W output power is sufficient for your appliances, please refer to our table of typical power consumption of domestic appliances.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for Iconica IC-BP3000-24 hybrid power inverter

User manual for 'WatchPower' PC software for Iconica IC-BP3000-24
