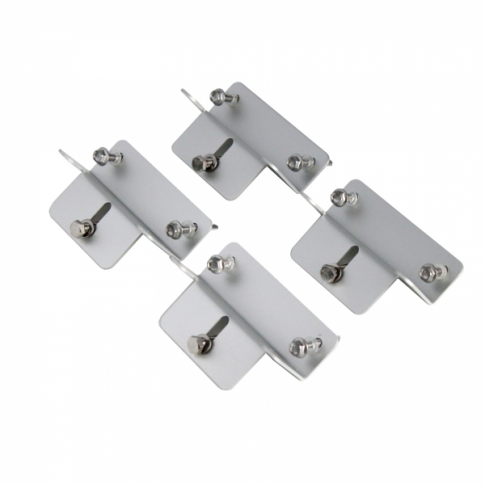

This set includes:

• 4 brackets made of aluminium alloy
• 4 x bolts with nuts and washers - for fixing the brackets to the solar panel
• 8 x self-drilling screws with washers for fixing the brackets to the surface

Key features:

• Comes complete with 4 brackets and all bolts, nuts and washers required for mounting
• Specially designed profile and double bolts at the base prevent the brackets from becoming loose and rotating
• Perfect fit for suitable Photonic Universe solar panels and most other solar panels
• Can be used for fixing solar panels to the roofs of motorhomes, caravans, camper vans, boats or other vehicles
• Made of aluminium alloy for strong and secure fitting of your solar panels

Please note:

The bolts supplied with these brackets are suitable for solar panels with a depth of 30mm or greater, and with mounting holes with a diameter of 8mm or greater.

For solar panels of an insufficient depth, the user can either source alternative bolts or shorten those supplied with the brackets.

Click on the Installation tab for more information

Installation is easy - fix the brackets to your solar panel using the short bolts, then put the solar panel with brackets on to the flat mounting surface and fix using the long bolts.

Please note that these brackets are not suitable for Photonic Universe solar panels smaller than 40W.
