Hybrid off-grid inverters

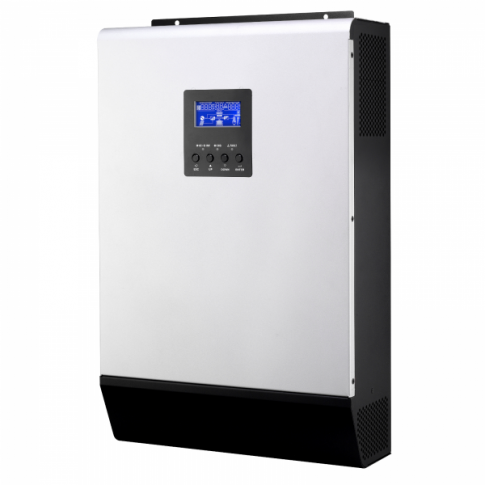

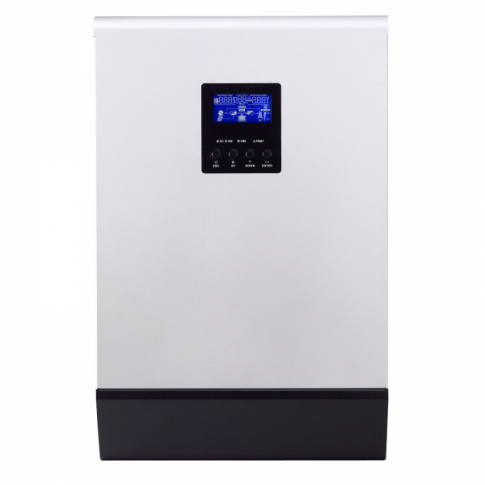

Iconica 3000W 48V hybrid pure sine wave inverter with 60A MPPT solar controller and 15A mains battery charger
Phone order?
0203 150 1111
and quote the product code below
The Iconica 3000W 48V hybrid inverter intelligently combines the functions of a 3000W pure sine wave inverter, 60A MPPT solar charge controller and a 15A smart battery charger in one single portable unit. This model can accept input from solar panels, mains power/ generator and a battery - either from a single or combination of input sources. In addition to its unique hybrid capability, this innovative inverter features advanced communication functions, along with a menu full of highly customisable settings.
This is the perfect solution for any off-grid application with limited or zero access to traditional mains power. This hybrid inverter features an Uninterrupted Power Supply (UPS), making it the ideal option for applications where the power supply is unreliable, intermittent or expensive to maintain. This inverter is great for both stationary and mobile off-grid installations (e.g. remote properties, holiday homes, huts and cabins or narrowboats, yachts etc), as well as for customers looking to reduce their mains electricity usage and save on electricity bills. It could also create the perfect back-up system in locations suffering from frequent power cuts.
Key functions:
1. 3000W 48V Pure sine wave inverter: Converts DC current into 230V AC mains electricity, to run various household appliances such as a TV, laptop, fridge, microwave, lighting etc. Able to generate 3000VA of continuous power with a strong peak power handling capability of up to 6000VA (to start powerful appliances with electric motors such as pumps, a vacuum cleaner, power tools etc). This inverter is a pure sine wave type, which easily surpasses modified sine wave inverters in terms of efficiency and compatibility with a wider range of appliances.
2. Inbuilt 60A MPPT Solar charge controller: Regulates the input from the solar panels to the batteries, with a full range of safety functions including protection against overcharge, overheating, reverse current etc. Advanced MPPT technology extracts the maximum possible output from the solar panels and operates at up to 98% efficiency. This inverter is therefore well-suited to systems with a large and powerful solar array, with a maximum allowed solar input of 3000W. Performance data for the solar array is displayed on the LCD screen.
3. Inbuilt 15A Smart battery charger: Designed to enable safe and efficient unattended charging of a battery from a mains power source or generator, with full overcharge protection and multiple charging stages.
Additional intelligent features:
The Iconica 3000W 48V hybrid inverter boasts an abundance of unique features, providing enhanced functionality over standard inverters. These include:
- Output source priority: This intelligent feature allows the user to set output source preferences (solar/ battery power/ mains input or a generator) for the AC load output of the inverter. This menu includes several options for varying conditions and scenarios, e.g. which source of energy is given priority for the AC output if solar power is insufficient/ if battery voltage is too low/ if mains is unavailable, etc.
- Battery charging priority: A wide selection of battery charging priority options are available. For instance, the user can choose to charge the battery using solar power only/ using a combination of solar power and mains power/ from mains power only etc.
- A range of highly customisable settings: The parameters for this inverter can be personalised to an exceptionally specific degree via the user-friendly interface. At the touch of a button, the user can customise parameters such as the AC input range, battery type, max charging current, specific high/low voltage disconnect points (and preferred charging source upon reconnection), the duration and voltage of each charging stage, auto-restart options, power saving mode, overload bypass, battery equalization stage characteristics and so on. There are also options for managing operational features such as the audible alarm and backlight settings.
- Illuminated LCD screen: Displays vital statistics which are easily changeable by use of the up/down keys. This information includes: status and mode, input/output voltage, frequency, battery voltage, load power and percentages, charge and discharge current etc.
- Advanced communication options: The inverter is supplied with a PC connection cable and PC software CD for convenient viewing of important system information, such as: solar/ battery/ AC voltage, charging current, battery capacity etc. Detailed data logs are also available to view and export to PDF/ Excel formats. This inverter also has the potential to send data to an online user portal using a Wi-Fi connection kit (purchased separately). By connecting via this method, the user will unlock access to exclusive features such as email status updates for the inverter, remote system monitoring from any location and much more.
- Auto restart function: When overload or overheating occurs, the inverter will disconnect the load appliances, and automatically reconnect once safe conditions are detected.
- Generator auto-start function: If connected to a generator via dry contacts, the Iconica inverter can send a signal to automatically start the generator as soon as the battery voltage drops below a certain level.
- Intelligent cooling design: The inverter uses predictive fan logic based on performance and temperature (1 or 2 fans operating at a time, with variable speeds) to prevent over-heating of the components.
Compatibility:
This hybrid inverter is suitable for 48V flooded and sealed GEL/AGM lead-acid batteries with pre-defined charging programs. A user-defined battery type with numerous customisable settings is also available for charging other lead acid batteries.
If you are unsure whether 3000W is enough for your appliances, please refer to the following table: Table of typical power consumption of domestic appliances.
Click on the Details and Specifications tab for more information.
Inverter specifications:
- Nominal battery voltage: 48V
- Continuous power output: 3000W / 3000VA (220-240V AC)
- Surge power: 6000VA
- Output frequency: 50Hz /60 Hz
- Output waveform: Pure sine wave
- Maximum solar input power: 3000W
- Maximum open circuit solar input voltage: 145V
- Solar MPPT operating voltage: 60-115V DC
- Maximum solar charging current: 60A
- Maximum mains AC charging current: 15A
- Maximum combined charging current: 75A
- Peak efficiency: 93%
- Solar / AC charger max efficiency: 98%
- Operating temperature: 0°C to 55°C
- Supplied with a PC connection cable and PC software CD
- Size: 479 x 295 x 140 mm
- Weight: 11.5 kg
This product is covered by a 1 year manufacturer warranty. For more information please refer to our Terms and Conditions.
Please note: Due to the low noise emitted by the cooling fan(s), this inverter may not be suitable for installation in locations which require absolute silence – e.g. bedrooms at night.
This product comes with a detailed user manual which explains wiring and operations (see Documents tab).
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
The following documents are available to download:
User manual for 3000W 48V Iconica IC-KMS3000-48P hybrid power inverter
User manual for 'WatchPower' PC software for Iconica IC-KMS3000-48P
