LiFePO4 Batteries

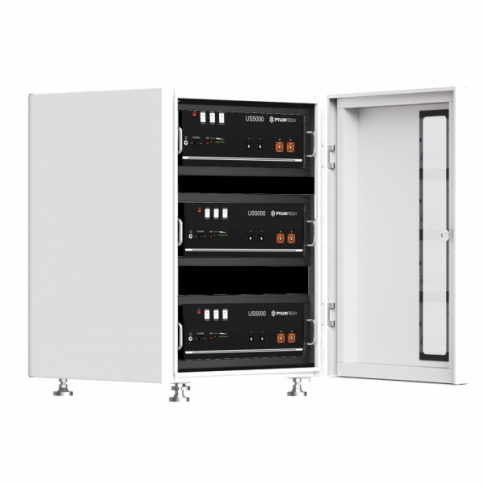

14.4kWh 48V Pylon US5000 Li-Ion Solar Battery storage system with IP65 rated cabinet
Phone order?
0203 150 1111
and quote the product code below
Key Features:
- High storage capacity: Fitted with three top of the line Pylontech Lithium-Ion batteries with a large 14.4kWh storage. Provides access to on-demand power for off-grid, supplemental, or UPS systems.
- Durable design: Built for tough environments, with IP65 protection ensuring the cabinet is resistant to dust, water, and adverse conditions, as well as capable of handling temperature fluctuations. This makes it ideal for outdoor and industrial installations, offering more flexibility and reliability in challenging environments while reducing maintenance needs.
- Optimized for compatibility: Designed for easy integration with up to three Pylon US5000 lithium battery modules.
- Efficient space utilisation: The cabinet’s compact and stackable design maximizes storage in limited spaces.
- Secure and stable mounting: Equipped with high-strength brackets to secure battery modules, reducing vibration and enhancing stability.
Applications:
The ES-CABINET is ideal for energy storage systems requiring robust, flexible enclosures. Perfect for residential, commercial, and off-grid energy storage solutions where durability and adaptability are essential.
Each cabinet is provided with mounting brackets and installation hardware for secure, hassle-free setup.
Click on the Details and Specifications tab for more information.
Battery Specifications (per battery):
- Storage rating: 4800Wh
- Voltage: 48V
- Rated to >8000 cycles at 95% Depth of Discharge (DoD)
- Parallel capability up to 16 units
- Nominal charge and discharge current: 100A
- RS485 and CAN compatible
- Dimensions: 442 x 420 x 161mm
- Weight: 39.7kg
Cabinet Specifications:
- Protection: IP65
- Size: 570 x 600 x 800 mm
- Weight: 43.0 kg
The batteries are covered by a 7 year warranty and the cabinet is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.
Please note the initial mounting positions in the cabinet will not align perfectly with all points on the lithium battery. Sufficient fixing can be attained with the available aligned positions for each battery or the battery can be positioned onto the shelf accordingly.
Datasheet for the Pylontech Lithium batteries (US5000)
