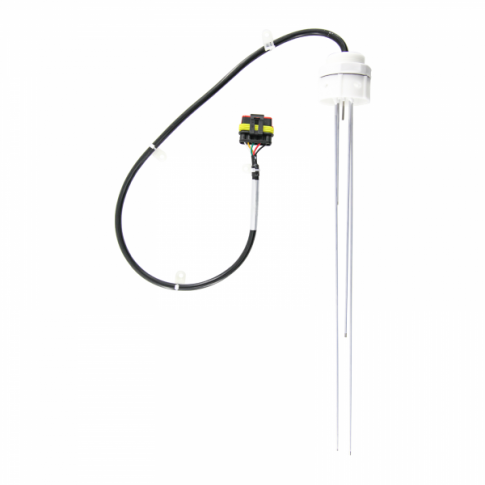

The MZAM-RSA is a top-installation conductive water tank sensor designed for reliable water level monitoring in various applications. Its adaptability and straightforward design make it ideal for use in recreational vehicles, marine, and special vehicles.

Key Features:

• Conductive design: This sensor uses the electrical conductivity of water to detect its presence at different levels in a tank.
• Measurement levels: Provides water level readings at 0%, 25%, 50%, 75%, and 100%.
• Top installation: Simple and convenient integration into tank systems.

The MZAM-RSA combines practicality and versatility, offering an efficient solution for water level sensing in diverse environments.

Supplied with a 5m communication cable.

Click on the 'Details and Specifications' tab for more information about this product.

Specifications:

• Length: 400mm
• Operating Temperature: from 0℃ to +85℃
• IP Rating: IP65

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for TBB Power Mobile RSA conductive water tank sensor (MZAM-RSA)
