Vehicle Power Management
TBB Power Mobile GY485 gyroscope
Phone order?
0203 150 1111
and quote the product code below

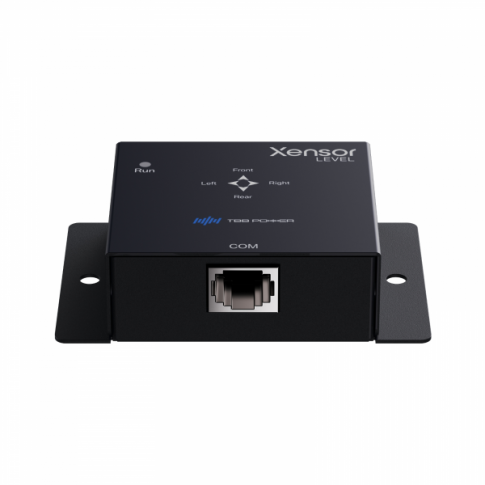

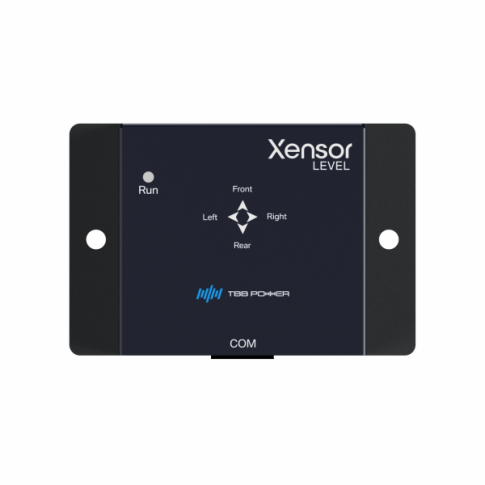

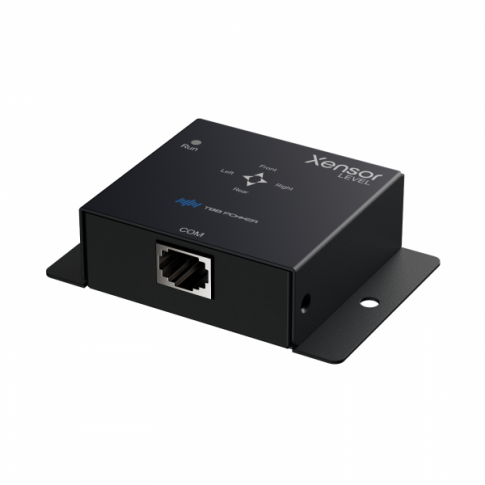

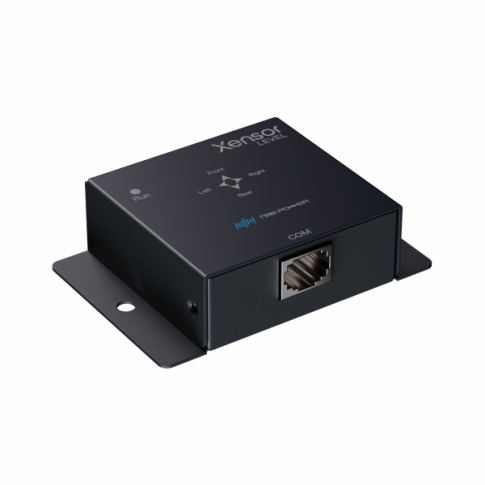

The MZAM-GY485 is a levelling measurement device designed for a MEZZO III or AMOY system, other vehicle installations, and industrial applications. Using a built-in gyroscope and sensor, along with a unique algorithm, it provides precise angle and position information. Compact, efficient, and robust, the MZAM-GY485 is built to perform in various environmental conditions.
Key features:
Precise levelling measurement:
- Integrated gyroscope and sensor deliver accurate angle and position data.
- Unique algorithm ensures precise and reliable measurements.
Seamless data communication:
Transfers information to monitors via RS485 communication, ensuring compatibility with various devices.
Calibration support:
Calibration function allows customisation to match real-world vehicle conditions for optimal performance.
Efficient power usage:
- Low idling power consumption of less than 30mA, ensuring energy efficiency.
- Operates on a rated voltage of 9-16Vdc, ideal for vehicle systems.
Durable and safe design:
- Engineered to perform in diverse environmental conditions.
- Includes over-current protection for enhanced safety and reliability.
The MZAM-GY485 is a robust and cost-effective solution for levelling measurement, offering precise data transfer, reliable performance, and compatibility with modern monitoring systems.
Click on the 'Details and Specifications' tab for more information about this product.
Specifications:
- Rated voltage: 9 - 16VDC
- Rated current: 11mA
- Idle power consumption: <30mA
- Communication port: RS485
- Operating temperature: from -40℃ to +65℃
- Mounting holes: M5
- Dimensions: 97 x 65 x 26.5 mm
This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.
Full details explaining wiring and operations can be found in the user manual supplied with this product (see Documents tab).
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
The following documents are available to download:
