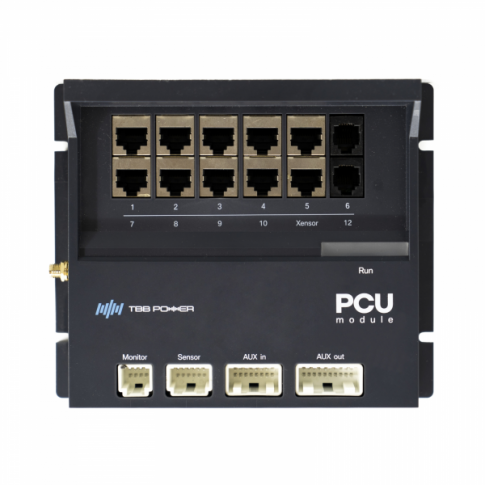

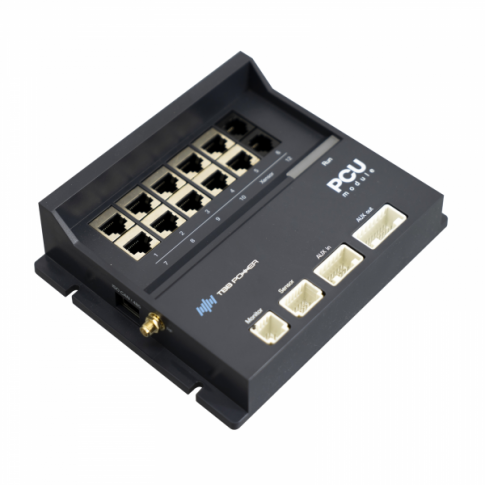

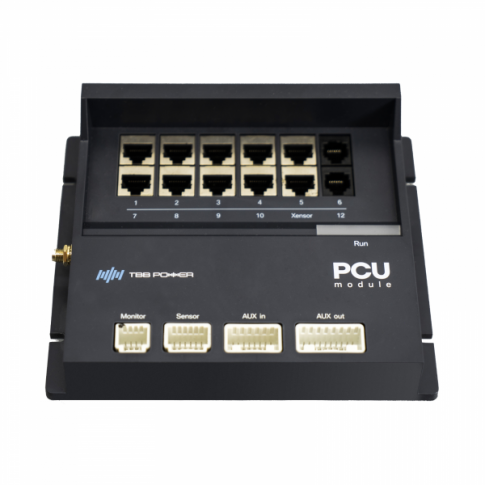

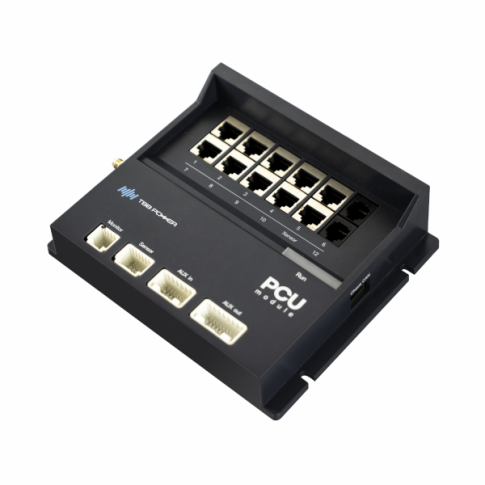

The AMOY-PCU Control Unit serves as the brain of your system, orchestrating the power sequence, coordinating charging and discharging, and ensuring system protection. With its intelligent design, this control unit manages critical operations efficiently while maintaining stability and low power consumption.

Key Features:

Comprehensive System Management

• Decides the power ON/OFF sequence for system components.
• Coordinates the charging and discharging of power products for optimal performance.
• Provides low voltage protection for the entire system.
• Collects error information from connected components and enables firmware upgrades.
• Ensures safe operation as the last component to power OFF and the first to power ON.

Dual Power Source Support:

• Can be powered by both leisure (12V & 48V) and starter batteries (12V), prioritizing leisure power.
• Rated Power: 12V 2A or 48V 0.6A.

Low Power Consumption Mode:

• Consumes only 12V 5mA in low-power mode.
• Wakes up via dry contacts, such as signals from MPPT chargers, inverter-charger combos, ignition systems, or the AMOY-A7 monitor.

Stable Monitor Power Supply:

Provides isolated 12V 1A power to the AMOY-A7 monitor for reliable touch functionality and display stability.

Advanced Communication Capabilities:

• Three CAN Communication Channels: Two non-isolated and one isolated.
• Two RS485 Channels: One for TBB system components and one for external devices.
• One LIN Communication Port.
• Radio Frequency Communication: Compatible with wireless control options.
• Cascade Communication: Supports cascading connections for expanded system management.
• Bluetooth Master Connectivity: Enables seamless pairing and control.

Enhanced System Protection:

• Supports voltage sampling from target and source batteries for precise monitoring.
• Ensures reliable operation with robust design and protective mechanisms.

The AMOY-PCU is a cornerstone of modern energy systems, delivering unmatched reliability, connectivity, and efficiency. Its advanced features and intelligent design ensure smooth operation, making it an essential component for any sophisticated energy management setup.

Click on the 'Details and Specifications' tab for more information about this product.

Specifications:

• Source battery rated power: 12V @2A
• Source battery voltage range: 10.5 - 16V
• Target battery rated power: 12V @2A or 48V @0.6A
• Idle current: 5mA
• Operating temperature: from -20℃ to +65℃
• Rating: IP20
• Dimensions: 162 x 134 x 43 mm
• Weight: 0.5 kg

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

Full details explaining wiring and operations can be found in the user manual supplied with this product (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for TBB Power AMOY PCU control unit (AMOY-PCU)
