Mezzo

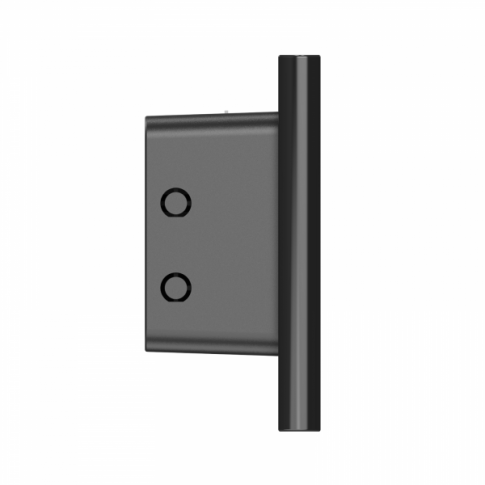

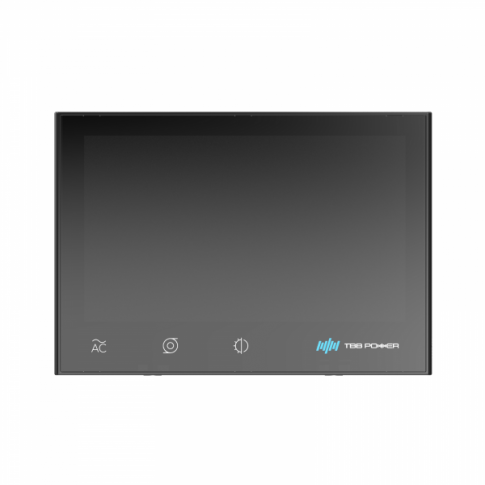

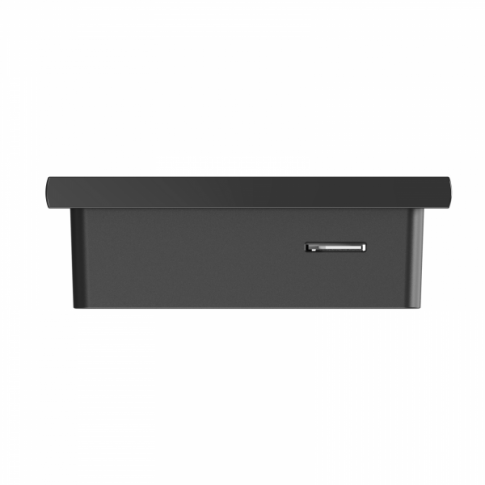

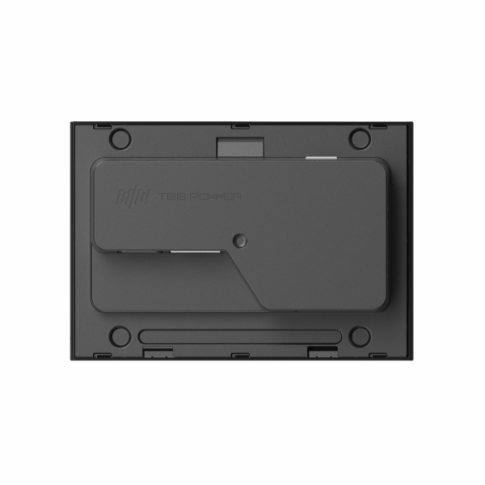

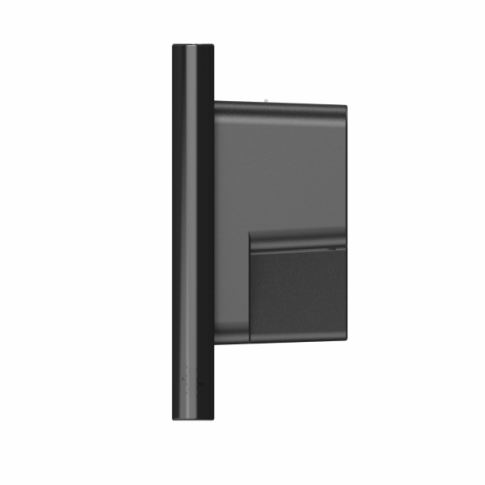

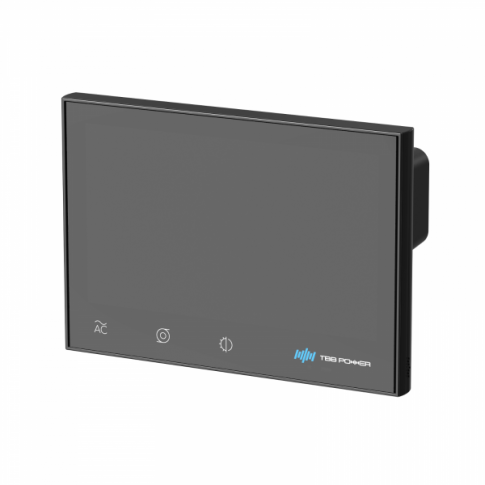

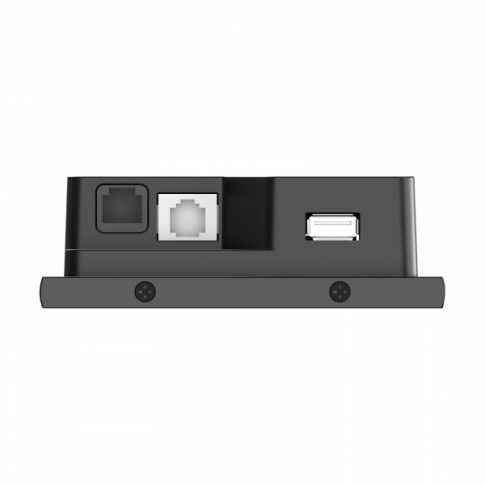

TBB Power Mobile MEZZO III 4.3'' LCD and control panel with Bluetooth
Phone order?
0203 150 1111
and quote the product code below
The MZ3-L4 LCD Monitor is a Linux-based 4.3-inch display-control screen designed for seamless system monitoring and load control in a MEZZO III system, vehicle, off-grid and industrial applications. Its compact design, advanced connectivity options, and intuitive interface make it an ideal solution for managing power systems efficiently.
Key Features:
Linux-Based Operating System
Ensures stability and reliability for advanced control functionality.
4.3-Inch Display
Provides clear and concise visualization of:
- Battery information.
- Power status and metrics.
- Water tank levels.
- DC load control.
Built-In Bluetooth
Supports TBB mobile app integration for convenient system management and parameter settings.
Versatile Connectivity Options

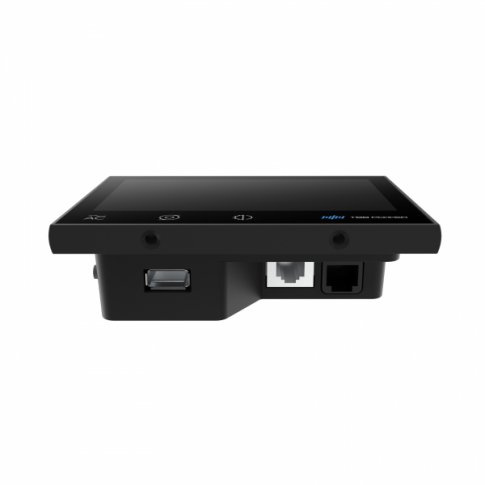

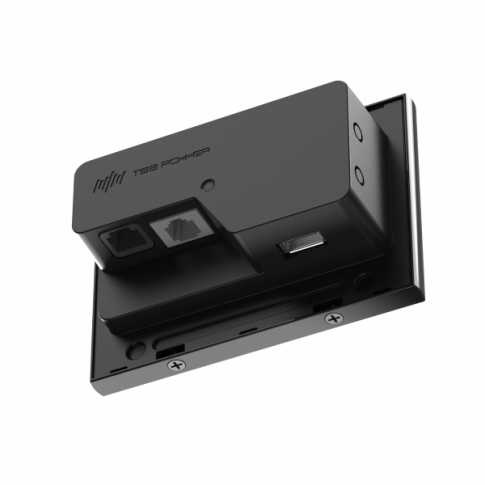

Equipped with CAN and RS485 ports for seamless communication with other system components and external devices.
Compact and Durable Design
Specifically engineered for the vehicle and industrial sectors, where reliable control and monitoring are essential.
The MZ3-L4 LCD Monitor is a versatile, reliable, and affordable solution for users looking to monitor and control their energy systems with ease and precision.
Click on the 'Details and Specifications' tab for more information about this product.
Specifications:
- Operating voltage: 12V
- Operating current: 100mA (average)
- Operating temperature: from -20℃ to +70℃
- Operating humidity: from 10% to 80% RH
- Resolution: 480 × 272 pixels
- Aspect ratio: 16:9
- Dimensions: 116 x 80 x 37 mm
- Weight: 180 g
This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.
Full details explaining wiring and operations can be found in the user manual supplied with this product (see Documents tab).
If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).
The following documents are available to download:
User manual for TBB Power Mobile MEZZO III 4.3" LCD Monitor (MZ3-L4)
