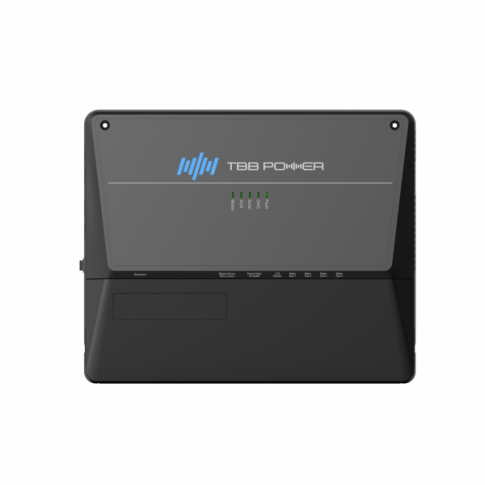

The MZ3-EMP30D is a fully integrated power management module designed for a MEZZO III system. Combining multiple functions into a single, compact unit, it simplifies energy management with advanced features, precise monitoring, and smart control capabilities.

The MZ3-EMP30D combines the following functions into a single box:

• 30A AC Charger.
• 30A MPPT Solar Charger.
• Vehicle Charger Relay (VCR): 60A continuous, 100A for 20 minutes.
• Smart Sensor Compatibility: Gas, levelling, TPMS, and more.
• Water Tank Measurement: Supports up to 4 tanks.
• Smart DC Load Management: Multiple outputs for tailored control.

Key Features:

Smart Battery Charger

• 12V 35A capacity (30A charging current).
• Multi-stage adaptive charging algorithm for optimised battery health.
• Active Power Factor Correction (PFC) for efficient charging.
• Temperature compensation charging to adapt to environmental conditions.
• Float charge support for starter battery.

Integrated Solar Charge Controller

• Supports both PWM and MPPT charging with a 30A capacity for solar energy systems.

Comprehensive Outputs and Load Management

• 15 built-in fused outputs for smart DC load control.
• 5 relay-controlled outputs for devices like water pumps and lighting.
• 3 dimmable outputs for adjustable lighting solutions.
• 6 constant-alive outputs and 1 permanent output for continuous power needs.

Robust Vehicle Charger Relay (VCR)

• Supports 60A continuous current and 100A for 20 minutes.

Smart Monitoring and Protection

• Built-in shunt for precise battery measurement.
• Battery low voltage protection to prevent deep discharge.
• Built-in battery switch for isolating the battery during storage.
• Supports 4 water tank sensors for comprehensive water level monitoring.

Advanced Communication Capabilities

• Built-in Master Bluetooth for connecting to Bluetooth sensors.
• RF communication for wireless switches.
• Compatible with RS485 and CAN communication protocols.

Sensor and Measurement Compatibility

• Supports smart sensors for gas detection, levelling, TPMS, and more.
• Includes water connectors and screw terminals for easy integration.

High-Quality Build

• Features automotive-class connectors for durability and reliability.
• Designed for precise and efficient performance in challenging environments.

The MZ3-EMP30D offers unparalleled functionality, making it the ultimate all-in-one solution for energy storage, management, and control.

Click on the 'Details and Specifications' tab for more information about this product.

Specifications:

• Grid nominal voltage: 240V @50/60Hz
• Grid input current at full load: 2.5A
• Source battery nominal voltage: 12V
• Source battery voltage range: 12.8 - 16V
• Target battery nominal voltage: 12V
• Target battery voltage range: 10.5 - 16V
• PV max open circuit voltage: 50V
• PV max charging current: 30A
• Charging relay current: 60A (Continuous) / 100A (Peak, 3mins)
• High voltage limit: 16V
• Max total battery capacity: 2000Ah
• Efficiency: 88%
• Protection: IP20
• Operating temperature: from -40℃ to +60℃
• Battery terminals: M4
• Load terminals: Wago2604-111 (4mm²) / Wago2604-1103 (6mm²)
• Dimensions: 339 x 252 x 76 mm
• Weight: 3.3 kg

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

Full details explaining wiring and operations can be found in the user manual supplied with this product (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for TBB Power MEZZO III power management module (MZ3-EMP30D)
