MPPT controllers

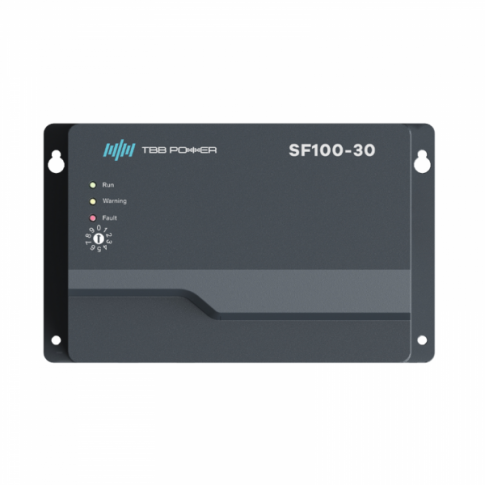

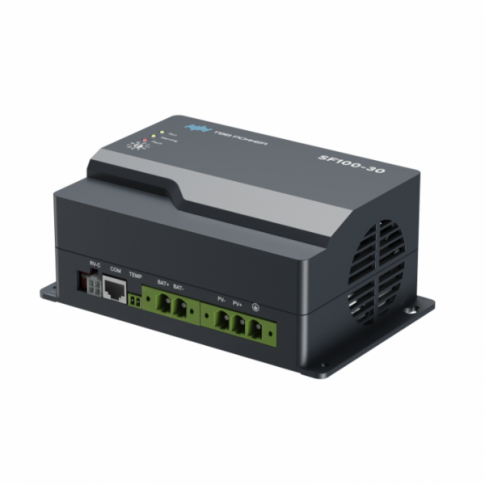

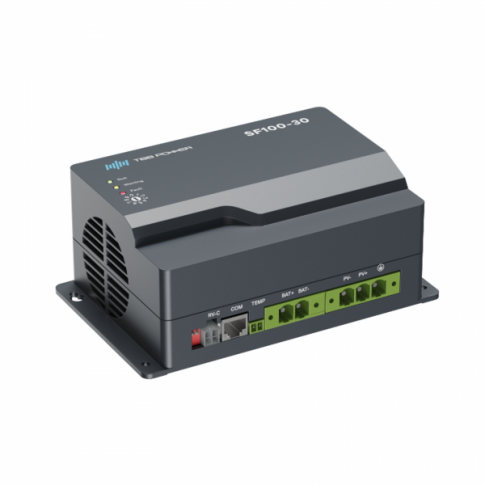

TBB Power 30A 12V/24V MPPT solar charge controller

TBB Power 30A 12V/24V MPPT solar charge controller
TBB Power 30A 12V/24V MPPT solar charge controller
TBB Power 30A 12V/24V MPPT solar charge controller
TBB Power 30A 12V/24V MPPT solar charge controller

Phone order?

Call our number
0203 150 1111
and quote the product code below
(have your card and delivery details ready)
Working hours Mon-Fri 9am-6pm
Product code:
TBB-SF100-30
Ex. VAT £124.99
Inc. VAT £149.99
Availability:
Out of stock
Add to shopping cart



The TBB-SF100-30 is a high-performance MPPT solar charge controller designed to maximize solar energy utilization with advanced maximum power point tracking (MPPT) technology. Engineered for efficiency and reliability, this controller ensures optimal charging performance for various battery types while offering seamless system integration through multiple communication protocols.

Key Features:

  • Advanced MPPT Technology: The TBB-SF100-30 controller rapidly and accurately tracks the maximum power point of the solar array, optimising real-time energy harvesting and increasing charging efficiency by up to 30% compared to conventional controllers.
  • High Efficiency Performance: Achieving a peak conversion efficiency of ≥97.2% and MPPT efficiency of ≥99.9%, the controller minimizes power loss and maximizes battery charging performance.
  • Wide Battery Compatibility: The TBB-SF100-30 supports charging for 12V and 24V battery systems, including Lithium (LiFePO4), Gel, AGM, and Lead-Acid batteries. Its multi-stage charging algorithm (Bulk-Absorption-Float-Recycle) ensures precise and efficient battery management.
  • Smart Communication & Monitoring: Equipped with RS485, CAN, and built-in Bluetooth connectivity, the controller allows real-time monitoring and configuration via the Solar Mate II app on smartphones and tablets (available on IOS or Android). It also stores historical data, including daily, monthly, and total power generation statistics, as well as event records for troubleshooting.
  • Battery Temperature Compensation: When using an optional Battery Temperature Sensor (BTS), the controller dynamically adjusts charging voltage based on battery temperature, preventing overcharging or undercharging in extreme conditions. Compensation can be configured via the Solar Mate II app.
  • Extreme Environment Resilience: Designed to withstand harsh climates, the controller supports solar charging at temperatures ranging from -40°C to 60°C, ensuring reliable operation in diverse applications.
  • Flexible Installation: The TBB-SF100-30 can be mounted in multiple orientations for easy integration into existing systems.



Built-in Protection Features:

  • PV Input Reverse Polarity Protection: Automatically shuts down in case of incorrect PV wiring.
  • PV Overvoltage Protection: Prevents damage from excessive input voltage.
  • Controller Overtemperature Protection: Dynamically reduces output power and shuts down if internal temperatures exceed safe thresholds.
  • Battery Overtemperature Protection: Monitors battery temperature in real-time (when BTS is connected) and adjusts charging current to prevent overheating.



The TBB-SF100-30 is an ideal solution for off-grid solar systems, RVs, marine applications, and backup power setups, delivering superior energy efficiency, intelligent monitoring, and robust protection for long-term performance and reliability.



Click on the Details and Specifications tab for more information about this product.





Controller specifications:

  • Battery voltage: 12V or 24V
  • Rated charge current: 30A
  • PV Max power: 500W@12V /1000W @24V
  • Max PV open circuit voltage: 100V
  • PV operating voltage range: Vbat + 5V-90V
  • Max PV short circuit current: 20A
  • Max MPPT efficiency: 99.9%
  • Battery type: GEL/OpzV, AGM, LFP, WET
  • Communication: RS485 / CAN (RV-C) / Bluetooth
  • Operating temperature: from -40°C to +60°C
  • Altitude: <5000m
  • Dimensions: 189.6 x 116 x 76mm
  • Weight: 0.82kg



The product is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.





The product comes with a detailed user manual which explains wiring and operations (see Documents tab). Advanced users will benefit from a section in the manual explaining MPPT technology.

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).





The following documents are available to download:

User Manual for TBB Power 30A 12V/24V MPPT solar charge controller (TBB-SF100-30)
