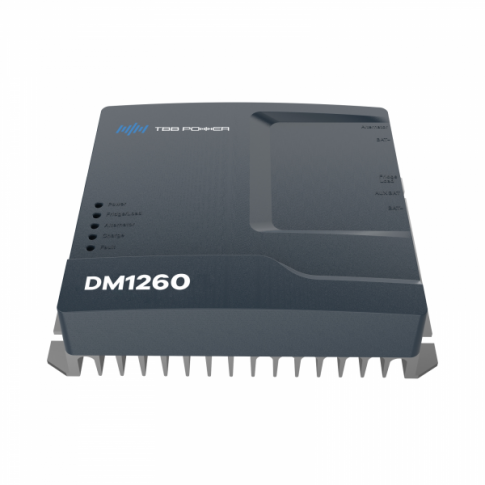

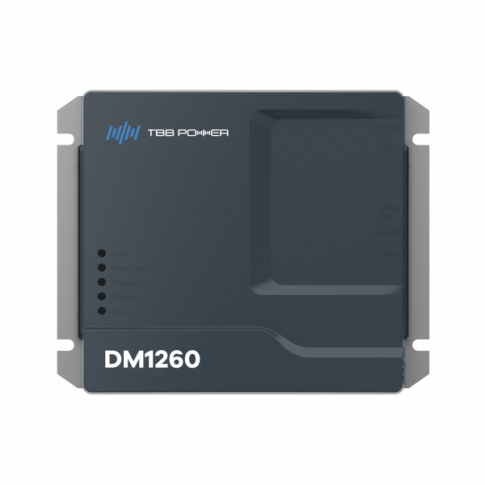

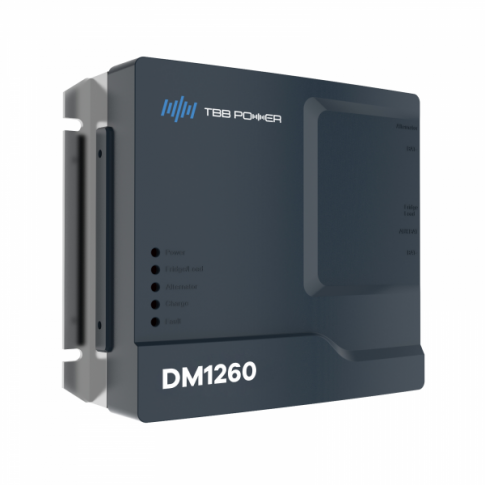

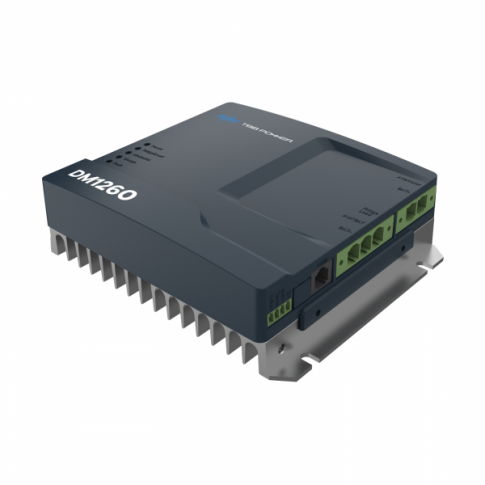

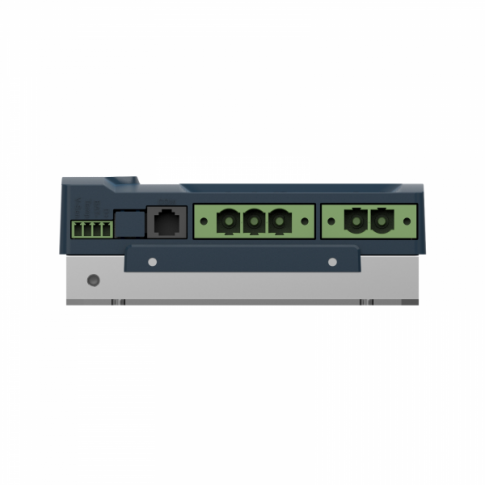

The TBB-DM1260 is a highly efficient in-vehicle DC-DC charger specifically designed for on-board applications such as RVs, marine vessels, utility vehicles, and trucks. This unit ensures optimal charging for auxiliary batteries, even in vehicles equipped with Euro-6 engines and smart alternators, which have variable voltage output.

Key Features:

• High efficiency: Non-isolated design with a maximum efficiency of 96%, ensuring minimal energy loss.
• Euro-6 engine compatibility: Capable of properly and fully charging auxiliary batteries with a wide variable voltage output from the engine.
• Advanced charging algorithm: Utilises TBB Premium II multi-stage charging algorithm for optimal battery charging performance.
• Supports multiple battery types: Compatible with Gel, AGM, Lead-acid, and Lithium (LiFePO4) batteries.
• Built-in temperature compensation: Automatically adjusts charging voltage based on battery temperature to prevent overcharging or undercharging.
• Plug-and-play installation: Designed for quick and easy installation with minimal setup required.
• Passive cooling: Naturally cooled without the need for a fan, ensuring silent operation and enhanced reliability.
• RS485 communication support: Enables integration into monitoring and control systems for advanced functionality.
• Comprehensive protection: Features safeguards against input/output over-voltage, output over-current, short circuit, internal over-temperature, and battery temperature extremes.
• Back-charging function: Allows power to flow from the auxiliary battery to the starter battery (0-3A), preventing engine startup failure due to a drained starter battery.

Efficient and adaptive charging

The DM1260 DC-DC charger optimizes battery charging using the TBB Premium II algorithm. This microprocessor-controlled system adjusts the absorption charging timer based on battery discharge state, ensuring efficient and complete charging. The float charging feature also maintains the battery's health over extended periods of connection.

Temperature compensation for optimal charging

Battery temperature significantly impacts charging performance. The included Battery Temperature Sensor (BTS) measures real-time temperature and adjusts the charging voltage accordingly. The default compensation rate is –3mV/°C/cell, ensuring batteries are charged under optimal conditions. If the BTS is not connected, the charger defaults to 25°C settings.

Smart power management

The DM1260 actively monitors its internal temperature and dynamically adjusts output power to prevent overheating. As the temperature rises, the charger will de-rate its output power to maintain safe operating conditions, ensuring long-term reliability and performance.

With its combination of high efficiency, intelligent charging, and robust protection features, the TBB-DM1260 DC-DC charger is an ideal solution for ensuring reliable auxiliary battery charging in a wide range of vehicle and marine applications.

Click on the 'Details and Specifications' tab for more information about this product.

Specifications:

• Source battery rated voltage: 12V
• Target battery rated voltage: 12V
• Alternator input voltage: 13.2V - 16VDC
• Maximum charging current of target battery: 60A
• Maximum charging efficiency: 96%
• Absorption charge voltage: 14.4V (AGM), 14.1V (GEL), 14.2V (LiFePO4), 14.7V (WET)
• Float charge voltage: 13.5V (AGM), 13.7V (GEL), 14.0V (LiFePO4), 13.5V (WET)
• Temperature compensation: -3mV/°C/2V
• Operating temperature: -40°C to 70°C
• Weight: 1.2kg
• Dimensions: 181 x 148 x 67mm

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

Full details explaining wiring and operations can be found in the user manual supplied with this product (see Documents tab).

If you need help with installation or have any technical questions we can provide FREE support - please contact us by email or phone (see Contact Us page for more information).

The following documents are available to download:

User manual for TBB Power 60A 12V to 12V DM battery charger (TBB-DC1260)
